SPECIFICATIONS

Brand Name: HengPoplar

Choice: yes

Display Mode: 480x272

Hign-concerned Chemical: None

Model Number: 4.3 inch touch screen

Origin: Mainland China

Resolution: 800*480

semi_Choice: yes

Features

· Highly integrated ESP32-S3r2 Soc with low power consumption

· 4.3-inch 480x272 touch screen LCD display for easy interactions

· Wireless connectivity with Wi-Fi and BLE

· Support rapid prototyping

· Provide open-source SDK based on ESP-IDF and Arduino

· Used MCU(8080) interface LCD Pannel

· On-Board buzzer

· ESP32-S3R2 Soc

· smart screen interface

· RS485 interface

· CAN  interface

· Extended IOpins on board

· Debug interface

· USB interface

· Onboard buzzer

· Reset button

Description

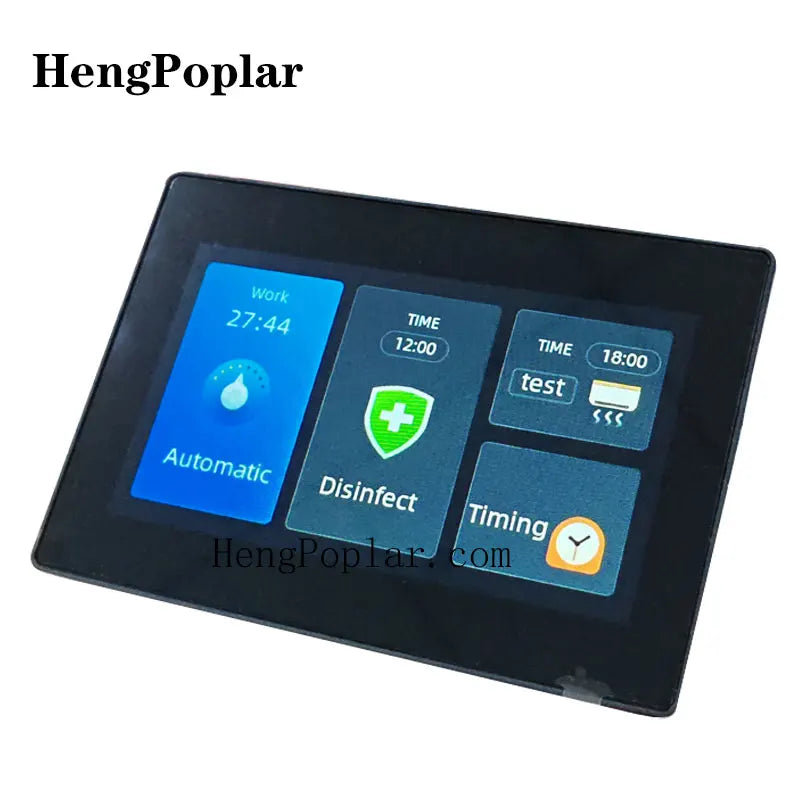

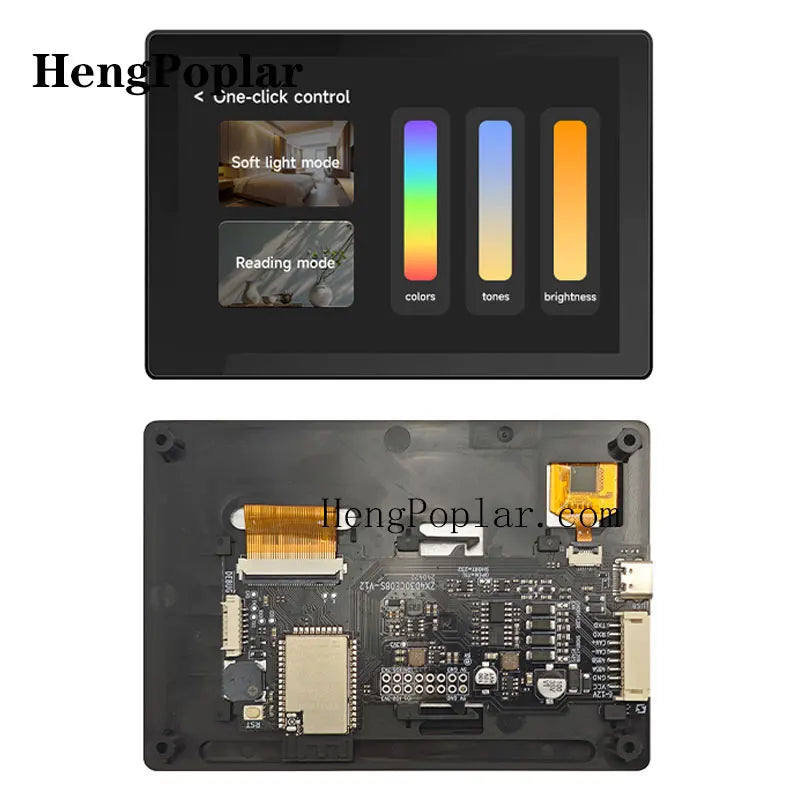

The SC07 is an ESP32-S3R2 SoC powered development board with a 4.3 Inch 480x272 color touch screen LCD display. The touch screen enables a new way of interacting with the ESP32-S3.

In terms of hardware, this serial screen is equipped with an advanced ESP32-S3R2 chip combined with 16MB Flash, ensuring excellent performance in data processing and storage capabilities of the device. This powerful configuration provides users with a smooth and stable operating experience, and can meet the needs of various complex applications.

In terms of display effect, the application of 4.3-inch IPS full fit technology makes the screen present clear and delicate image quality. The resolution of up to 480 * 272 provides users with a realistic visual experience, enabling precise and delicate display of both text and images.

In addition, the SC07 touch serial port screen also performs well in communication and scalability. It supports multiple communication methods such as RS485,CAN, WIFI, and Bluetooth, providing users with flexible and diverse networking options. At the same time, the reserved multiple expansion IOs enable the device to seamlessly integrate with other external devices or systems, further expanding the application scope of the product.

In terms of design, the combination of integrated black technology and plastic frame makes the product appearance simple and atmospheric, while also increasing the durability and stability of the product. This design not only facilitates embedded installation, but also enables the product to easily integrate into various application scenarios.

The solution is often used in smart products such as bicycle computer meters, energy storage charging equipment, air fryers, water heaters, washing machines, ovens and various applications that require LCD displays, and is often used as the first choicefor upgrading the traditional segment code screen or black and white screen solutions.

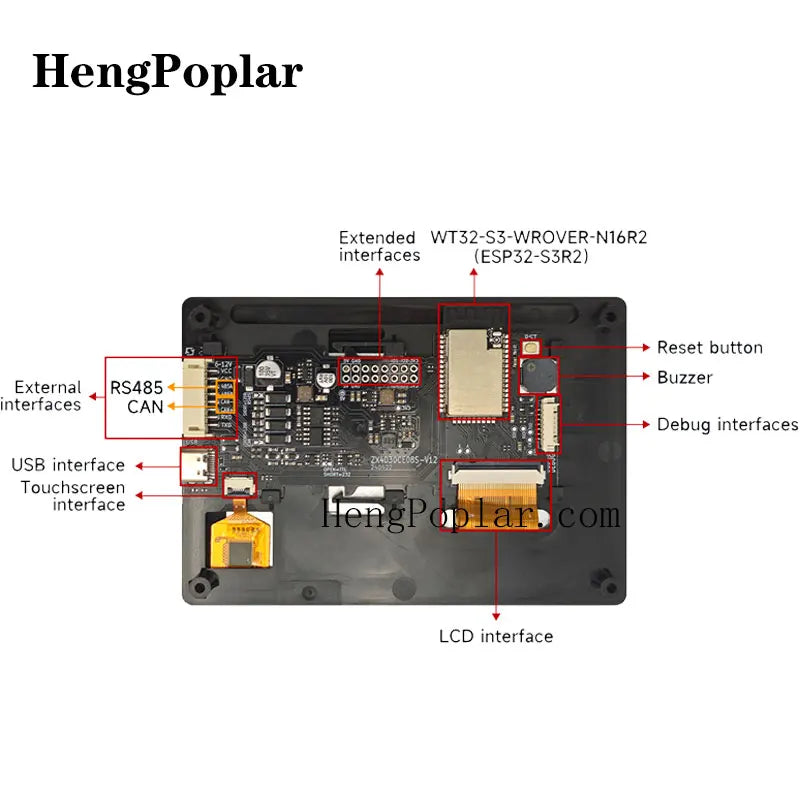

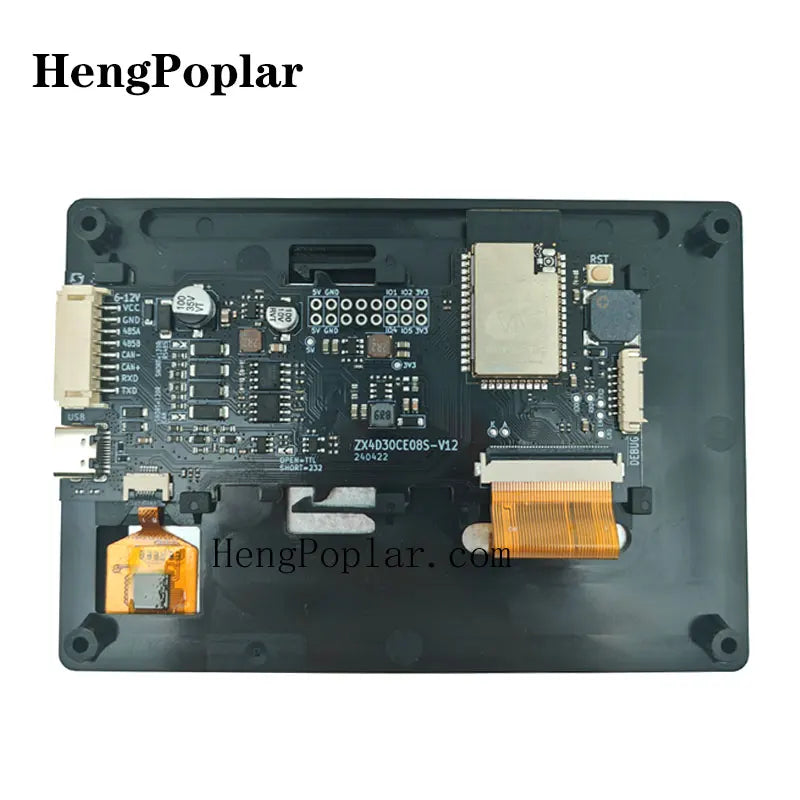

Hardware Overview
