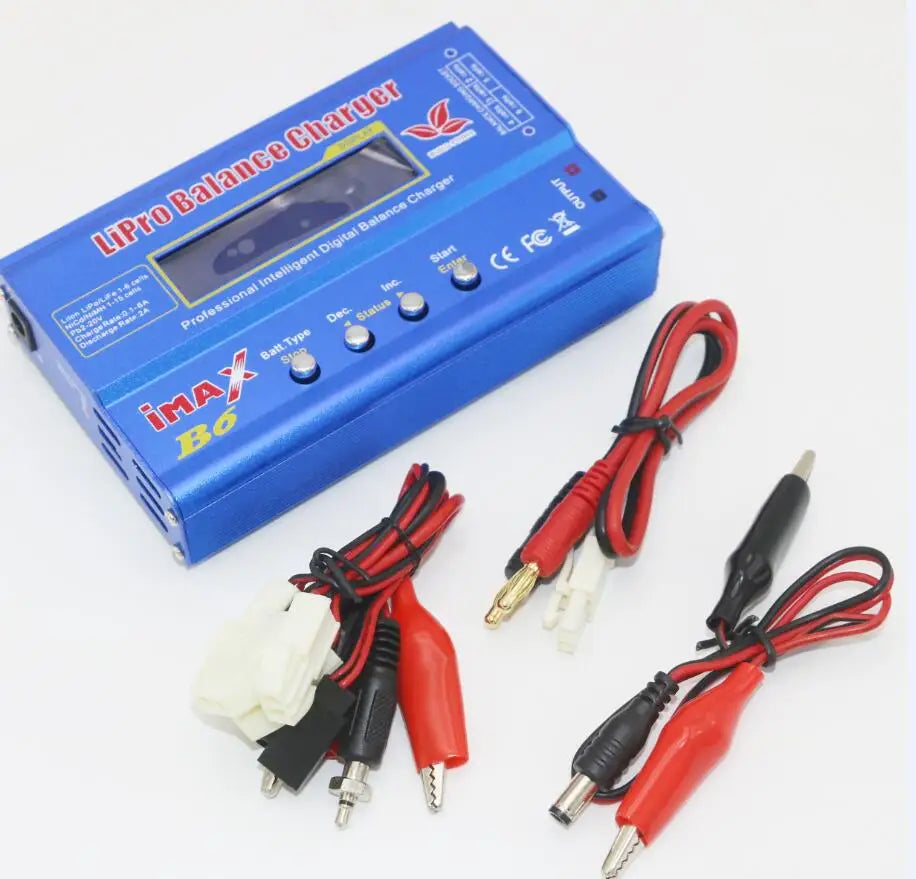

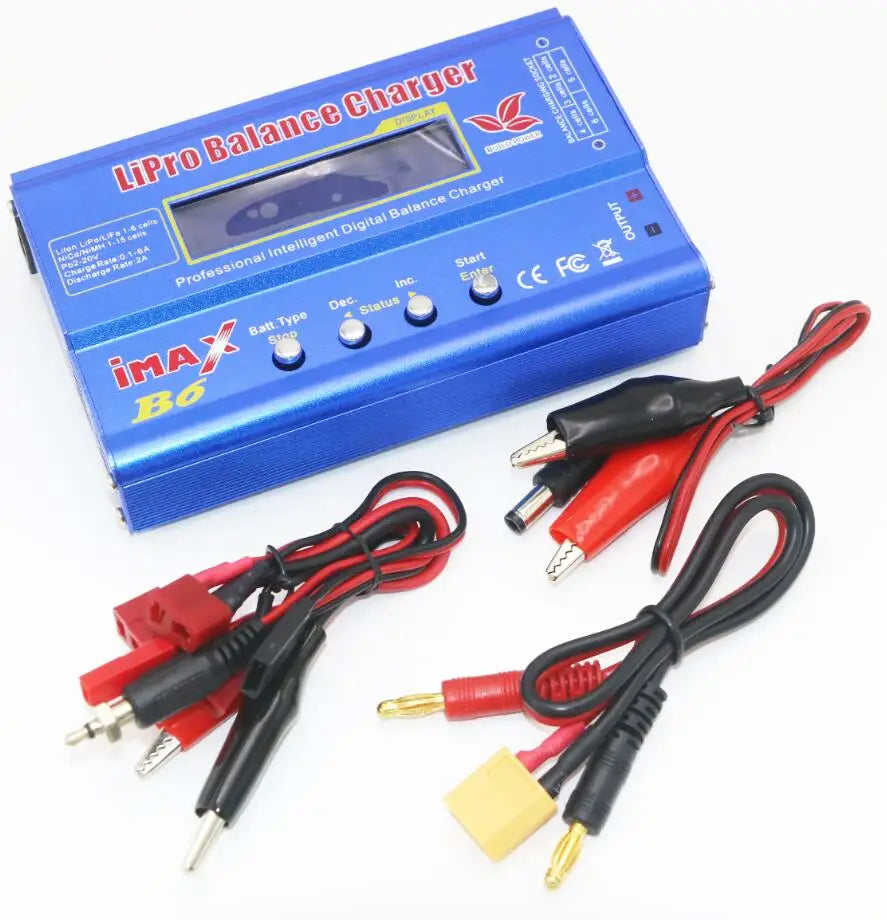

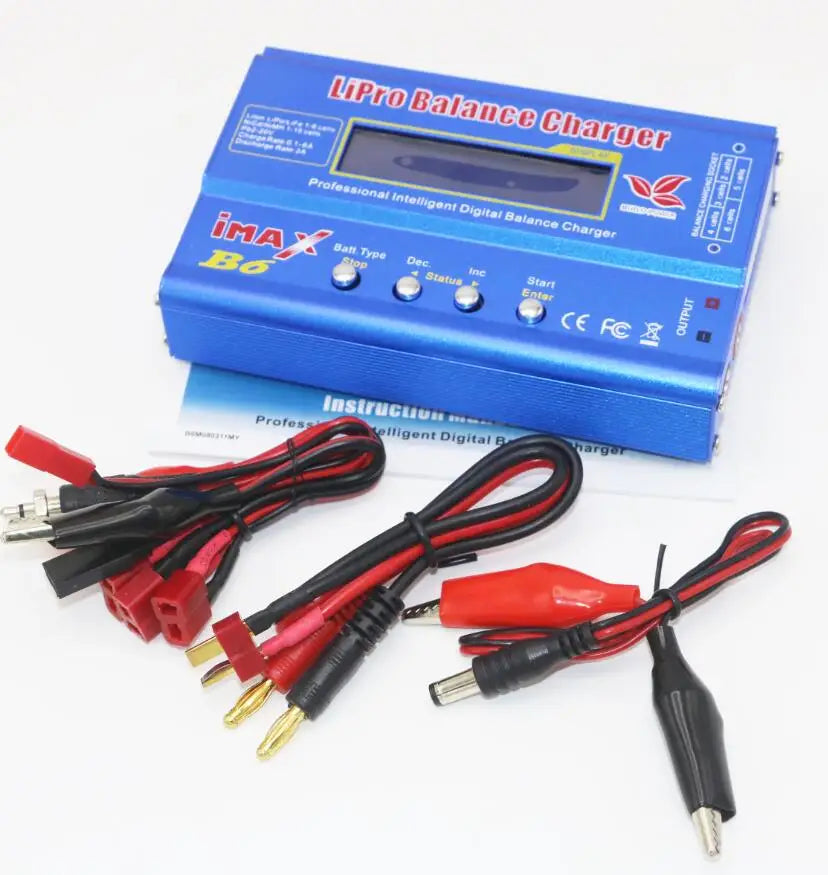

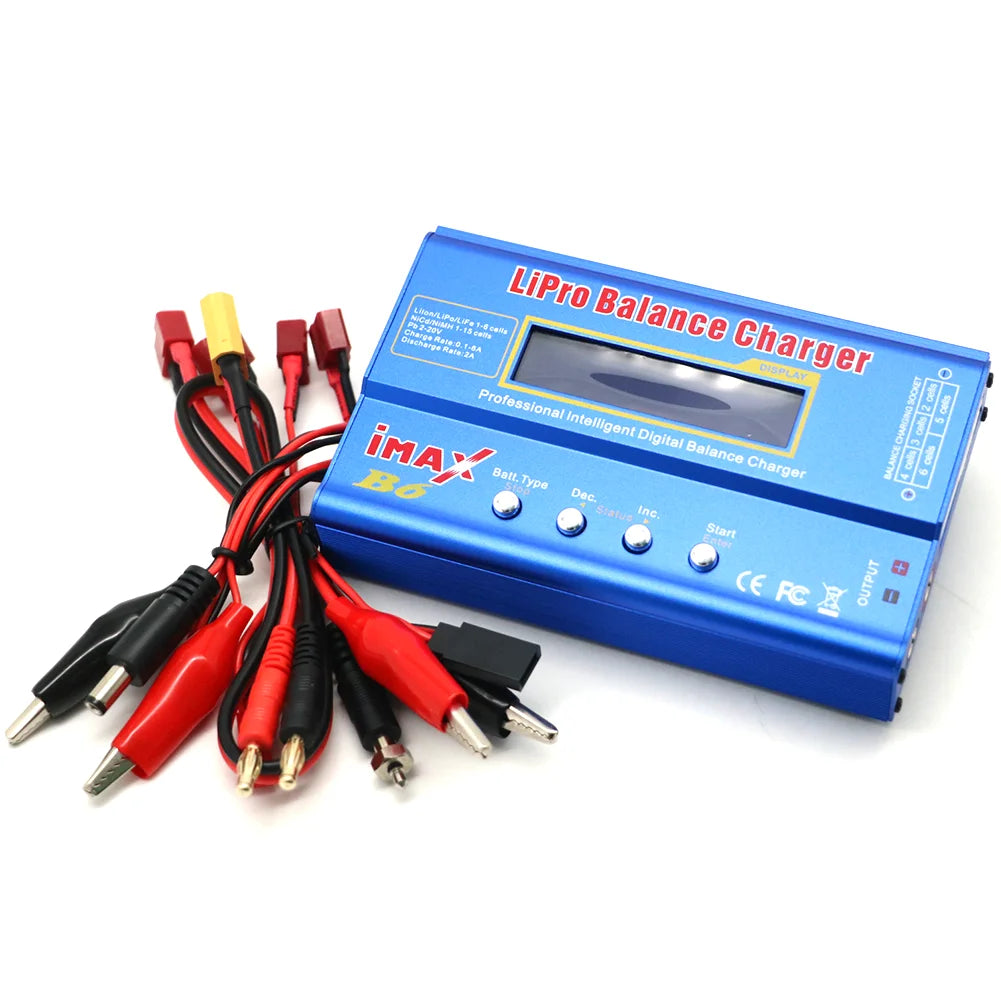

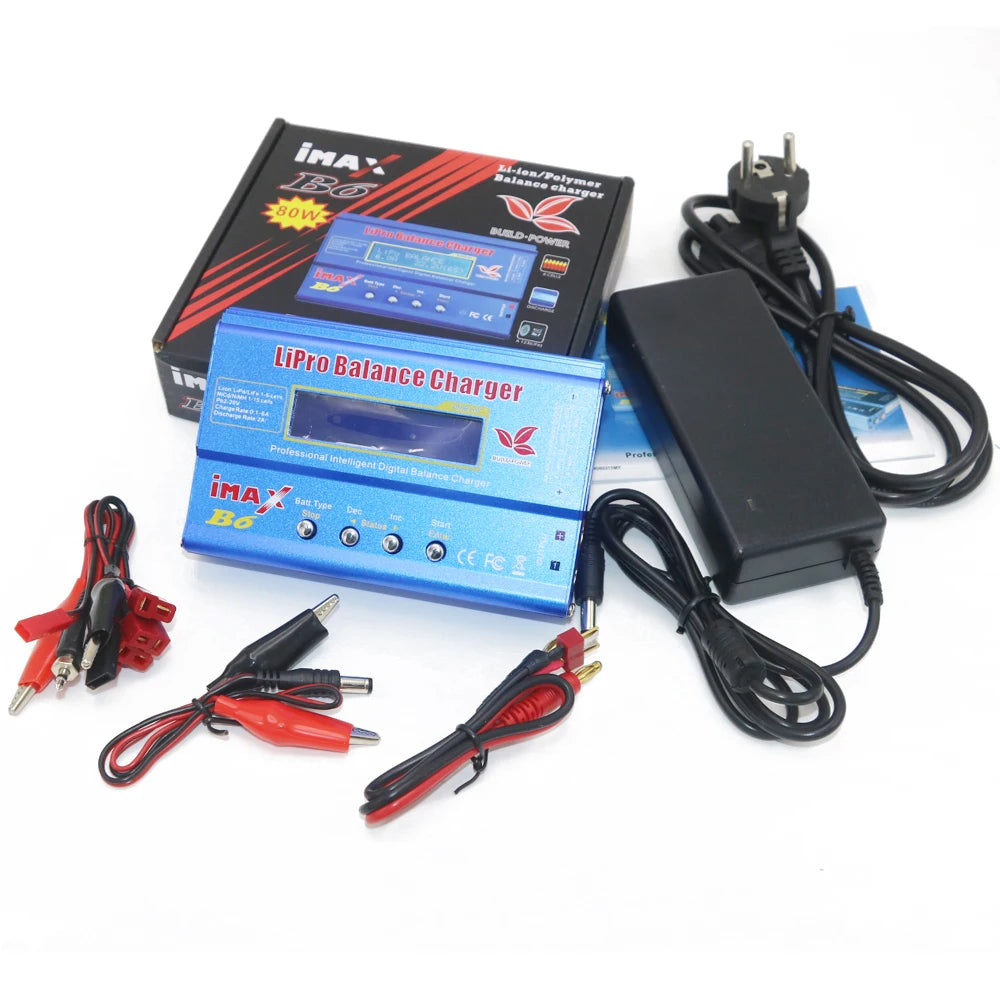

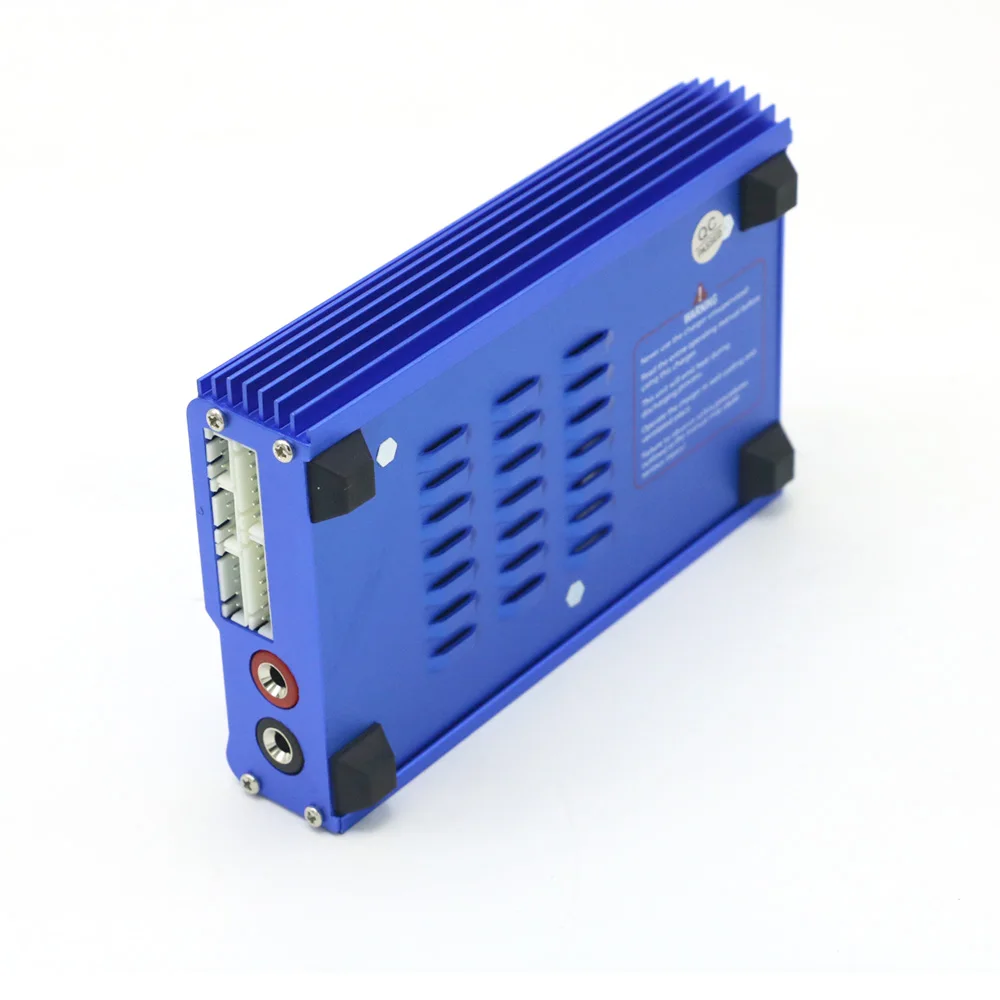

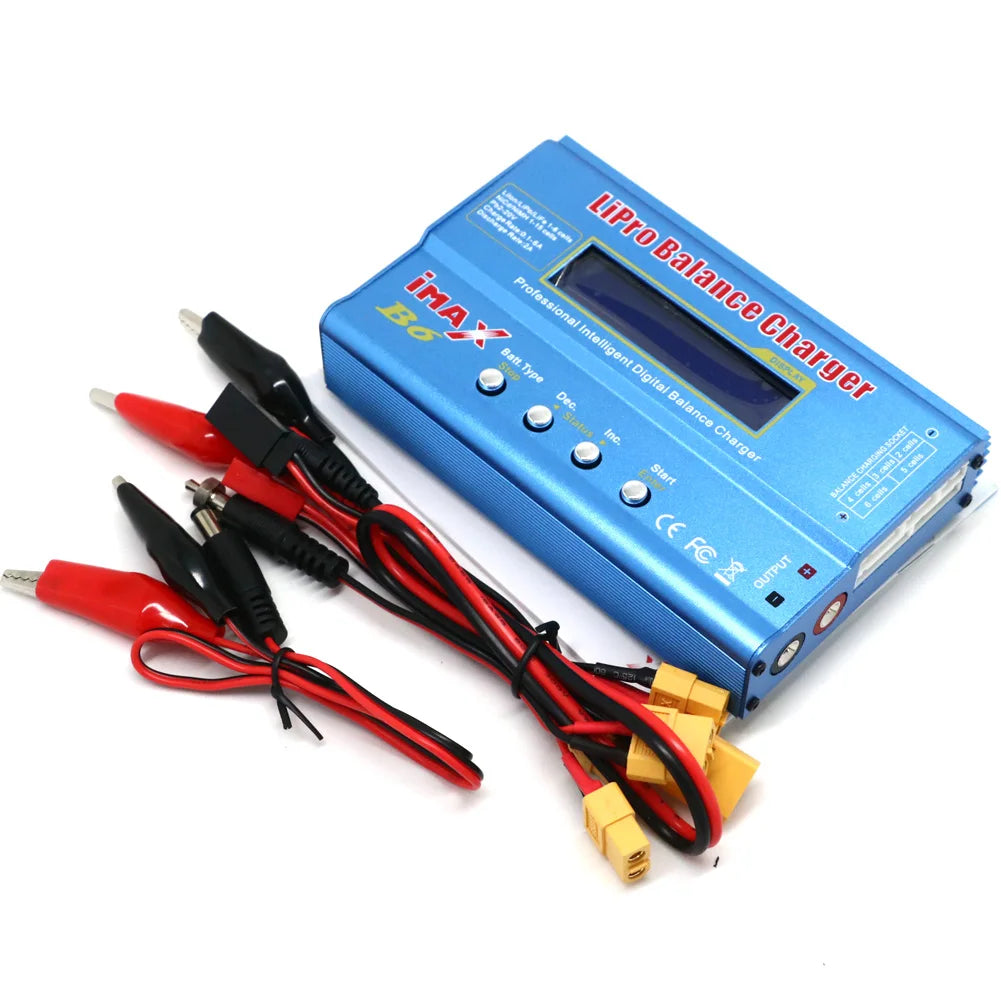

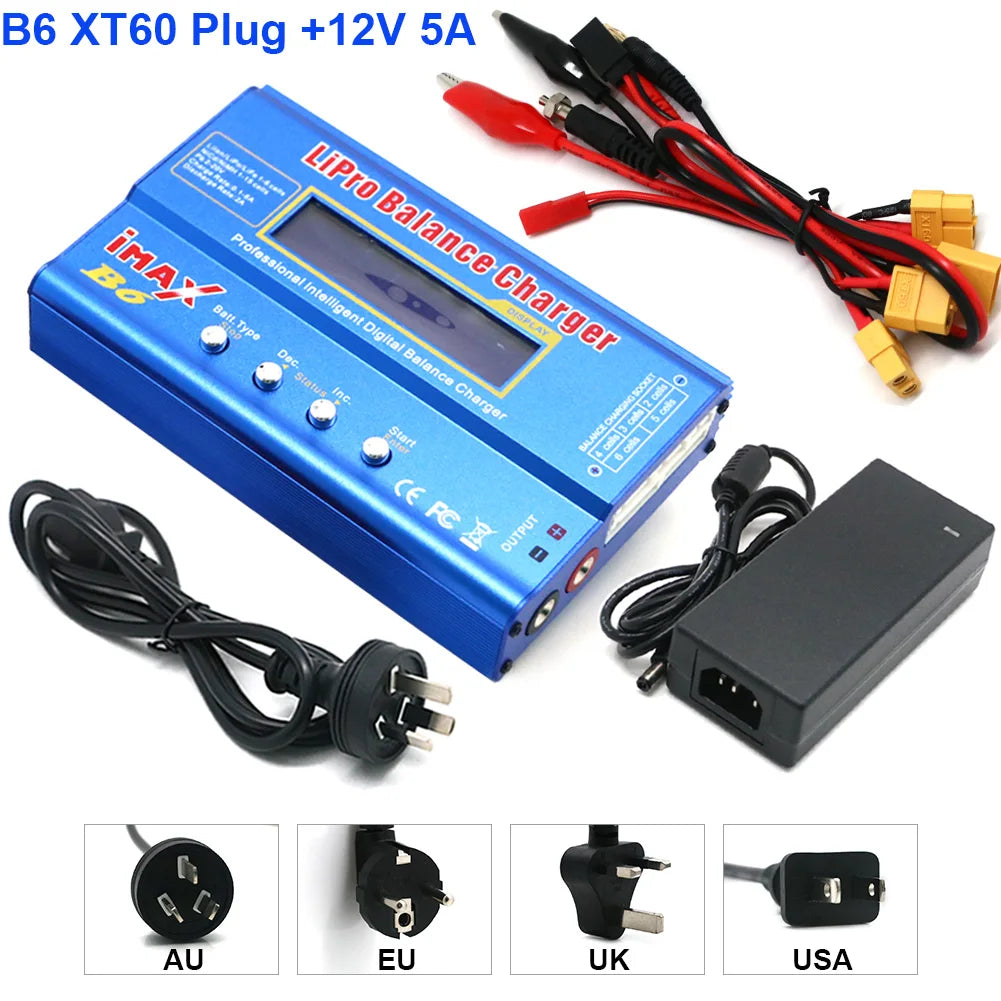

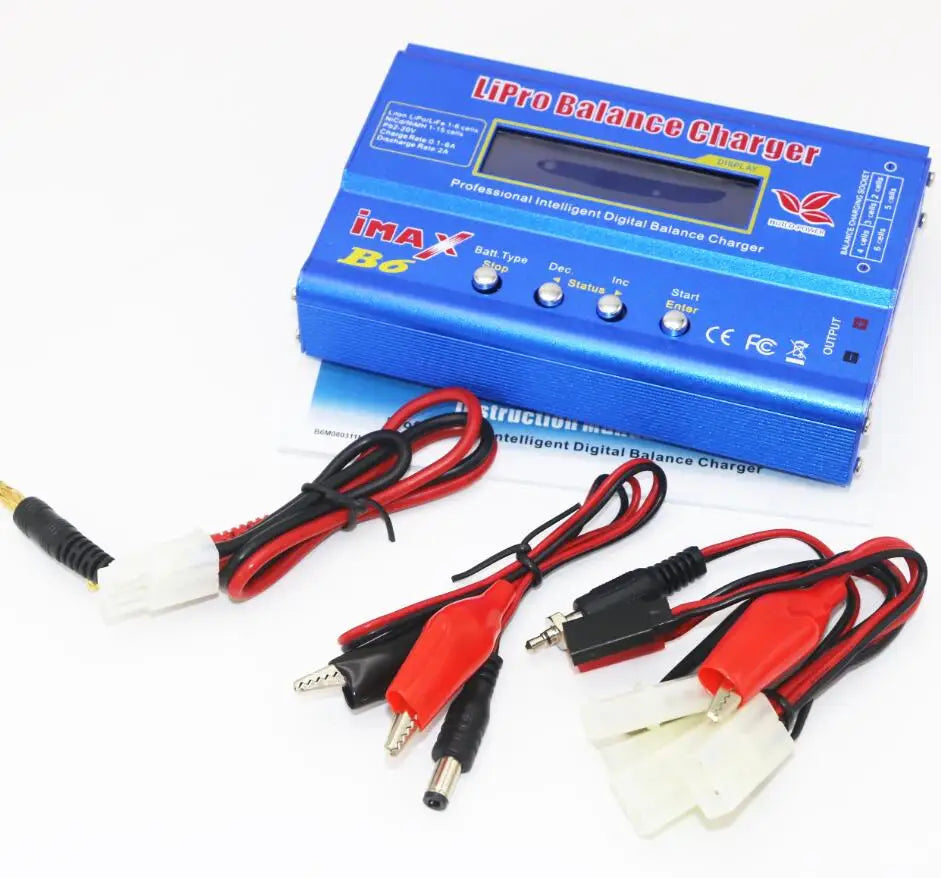

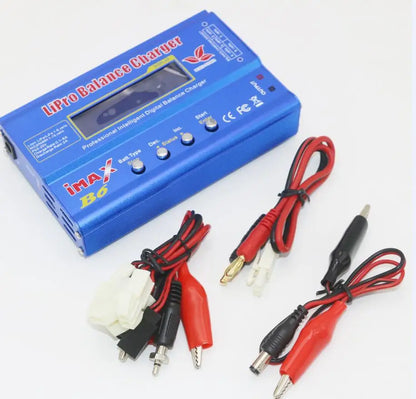

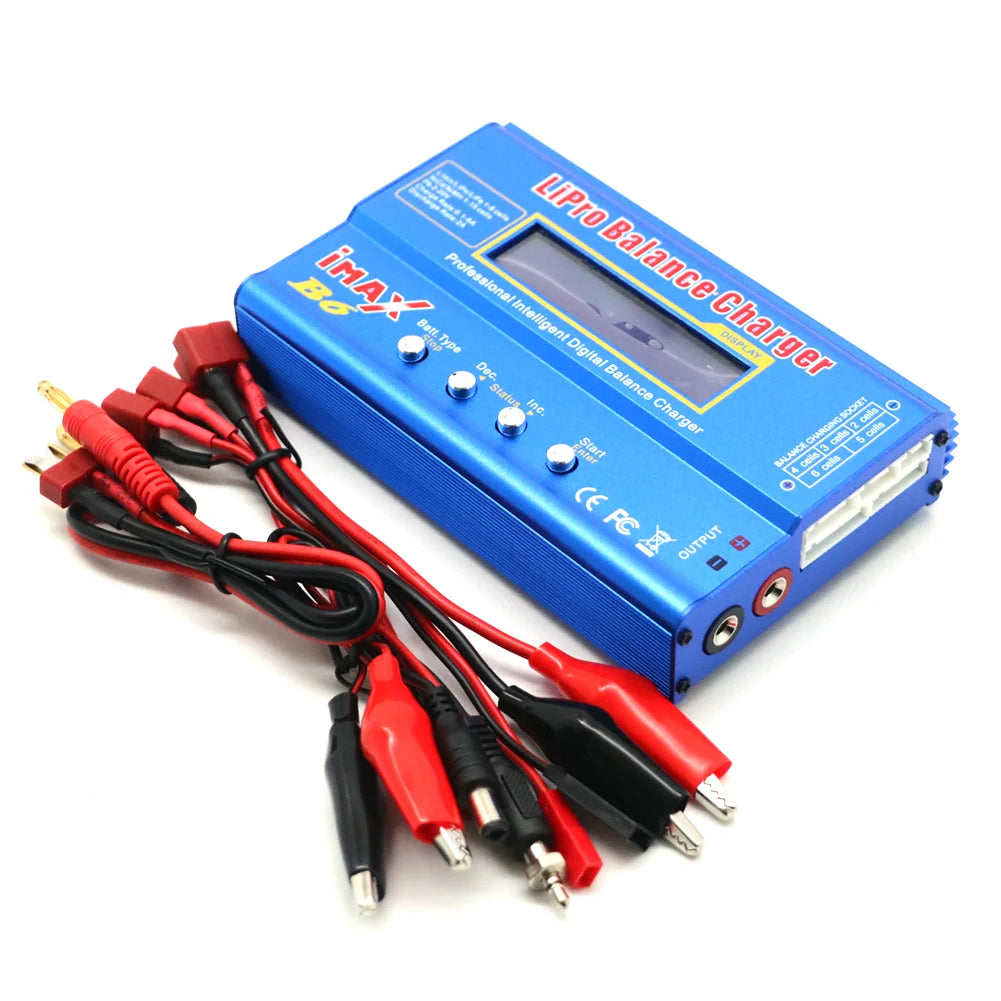

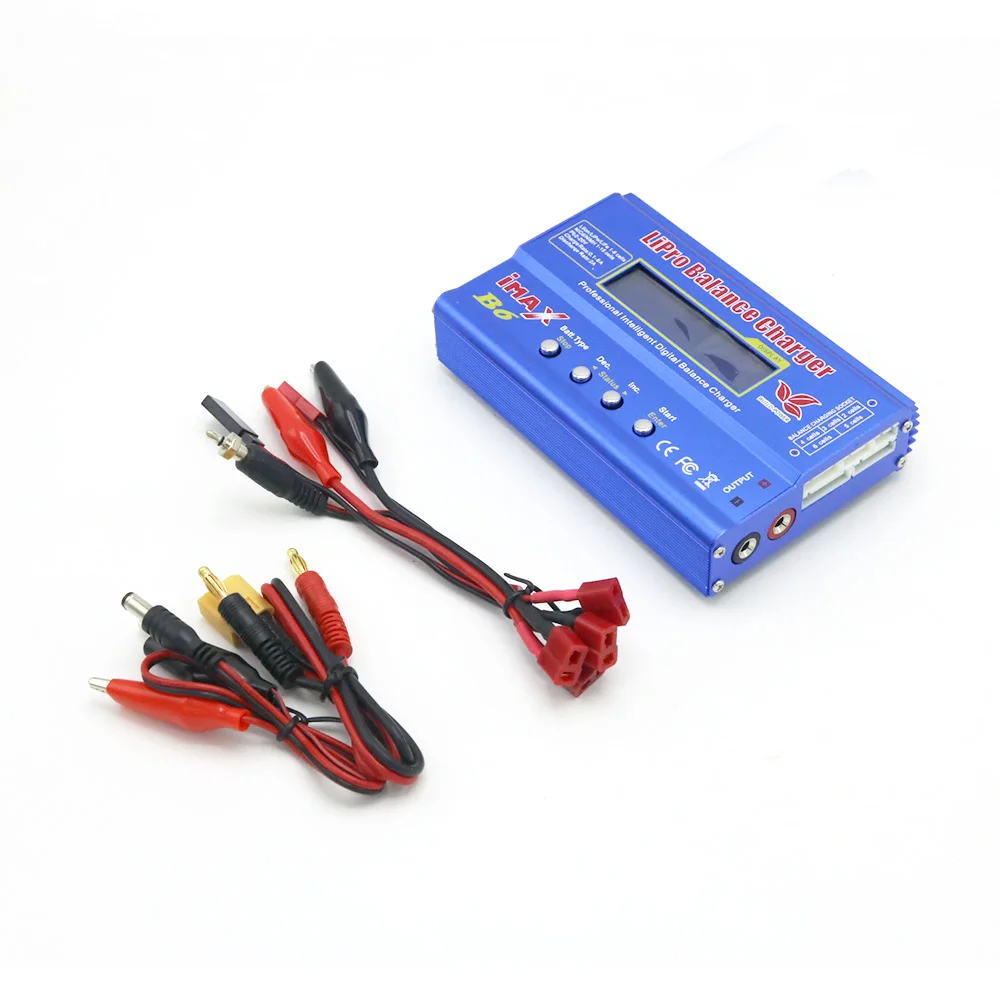

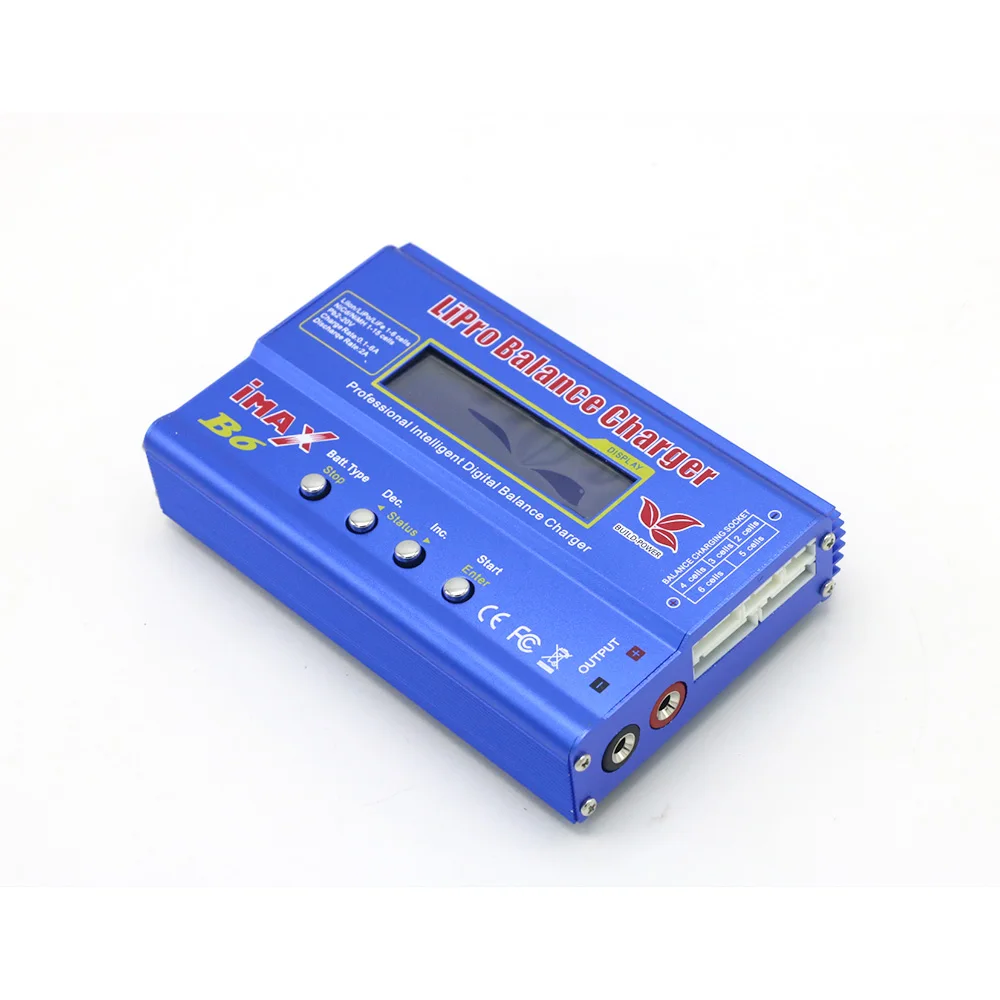

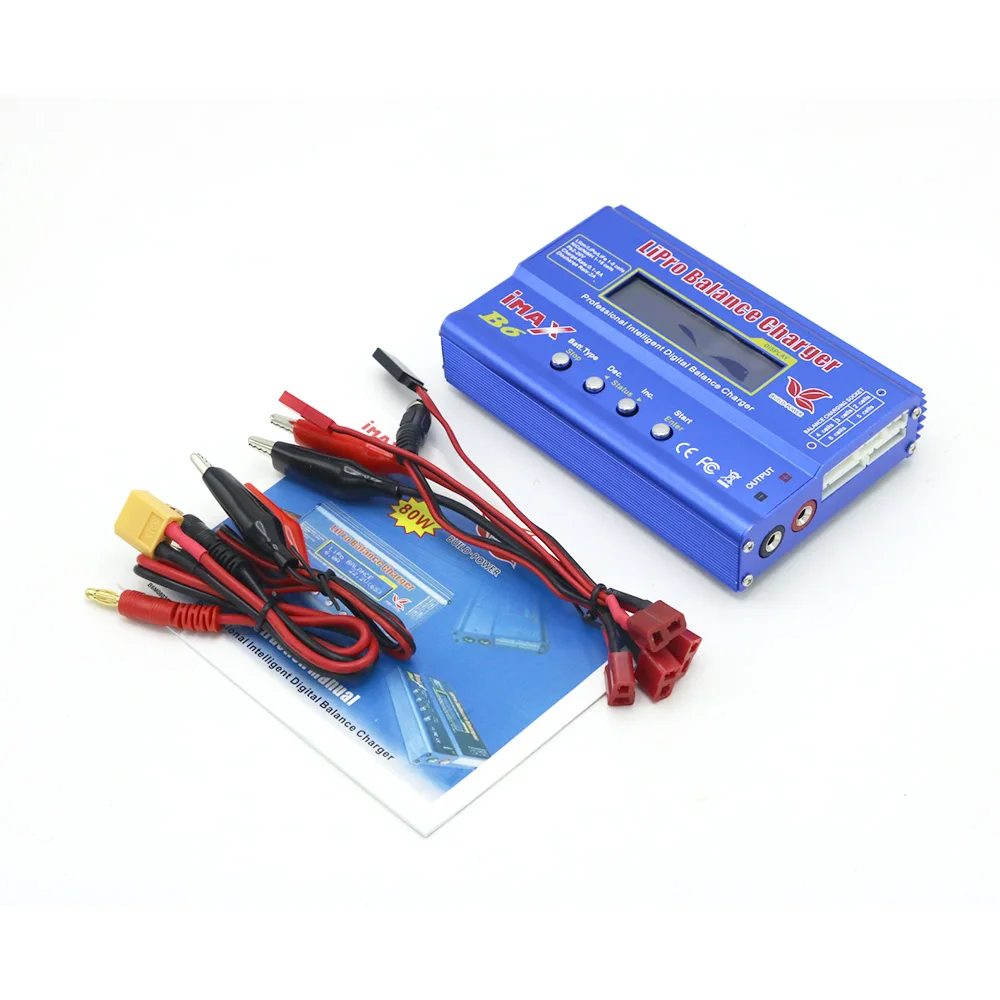

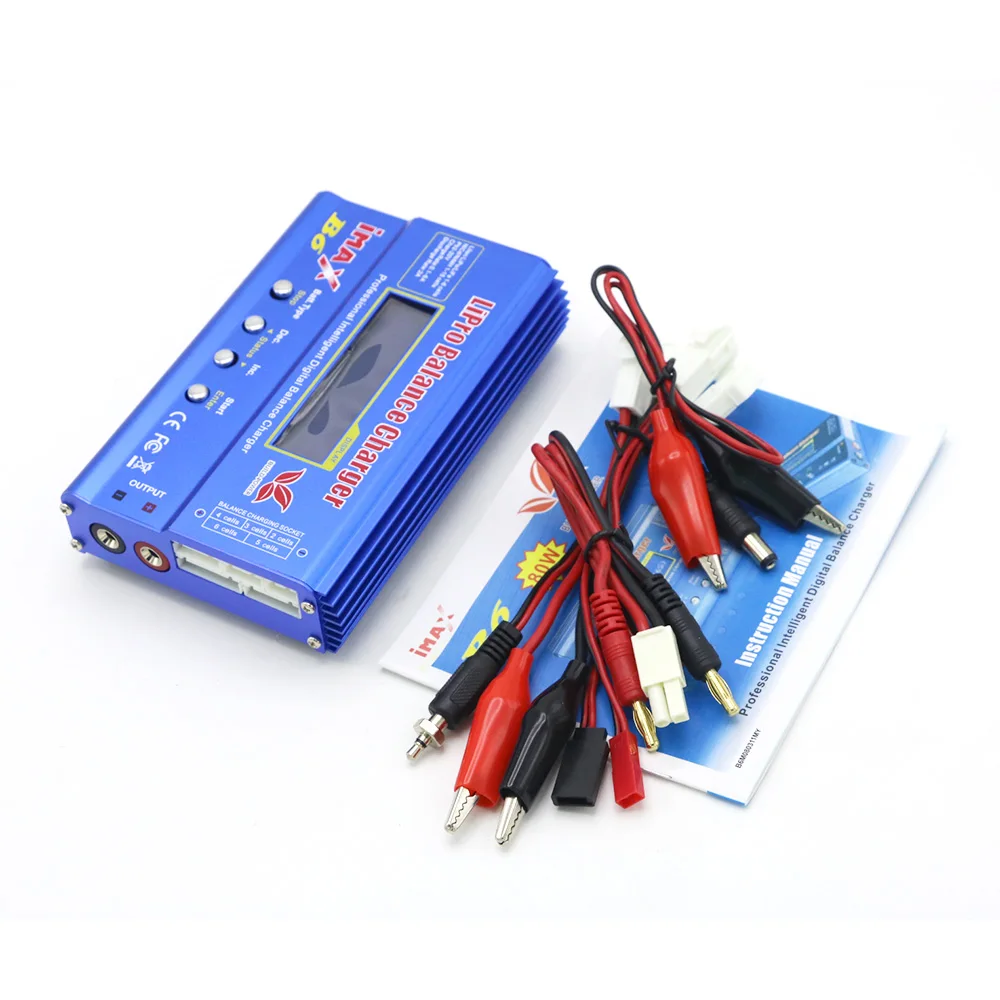

IMAX B6 LCD Screen Digital RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger

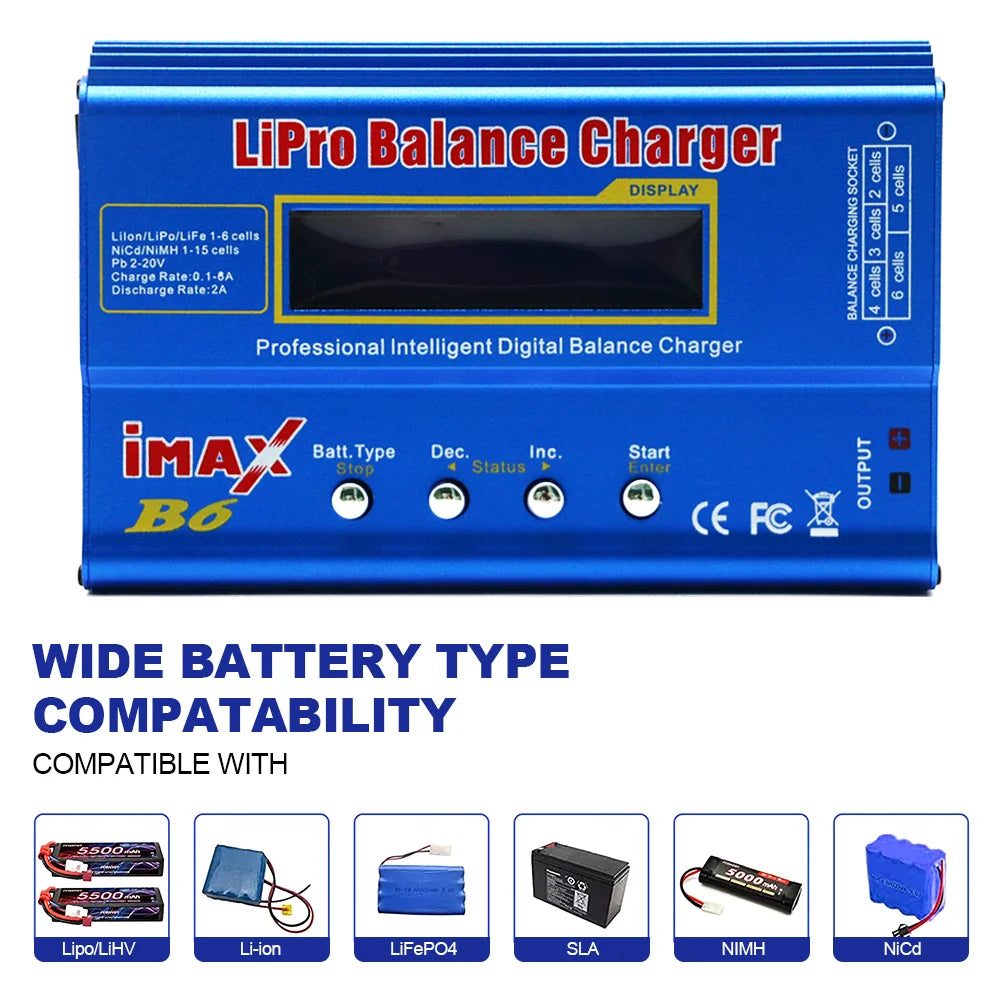

IMAX B6 is the new intelligent multifunction charger which can charge and discharge for
Lion, LiPo, LiFe , Pb, NiCd and NiMH batteries. It\'s all-powerful in a way.

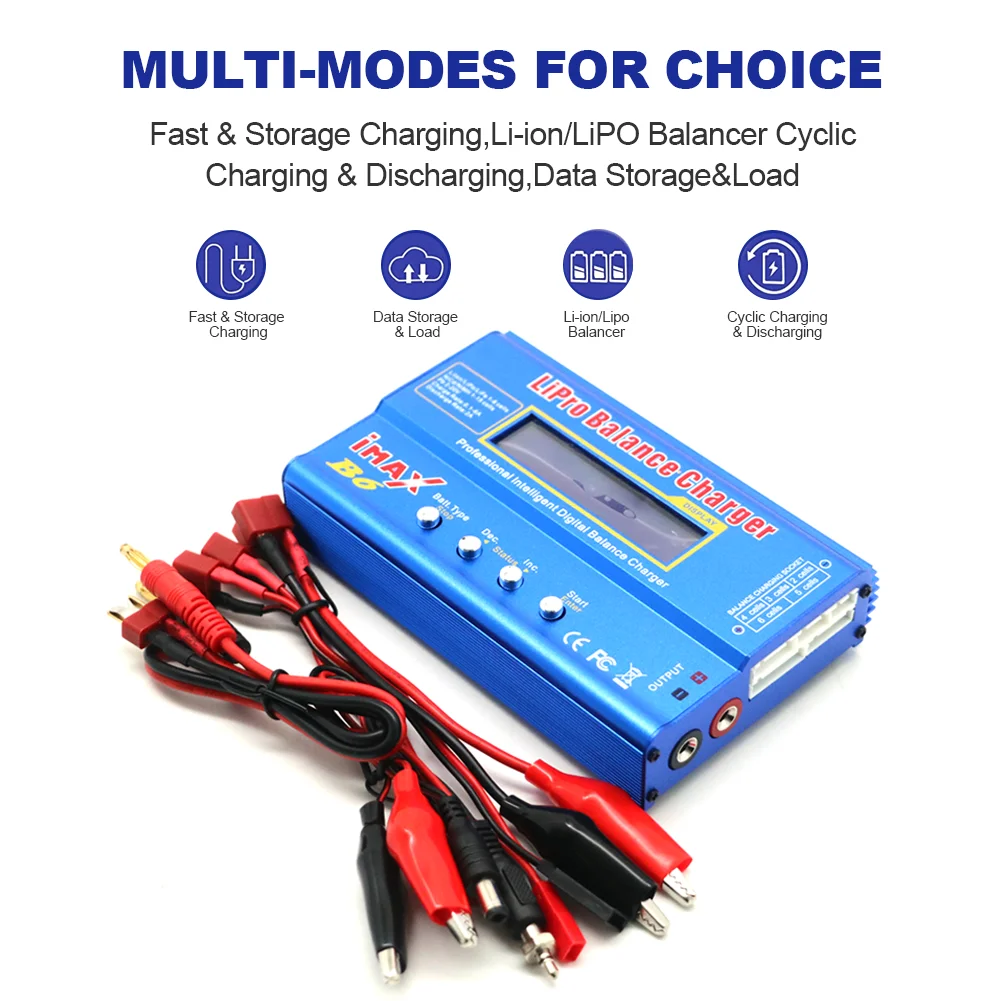

Feature:
1. Microprocessor controlled Delta-peak sensitivity.
2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function, allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation  system (LiFe) battery

Specification:
* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A/5A)
* Circuit power: Max.charge power 50W / 80W / Max.discharge power 5W
* Charge Current Range:50W 0.1~5.0A / 80W :0.1-6.0A
* Discharge current range:50W 0.1-1.0A / 80W:0.1-2.0A
* Current drain for balancing Li-po: 300mAH/cell

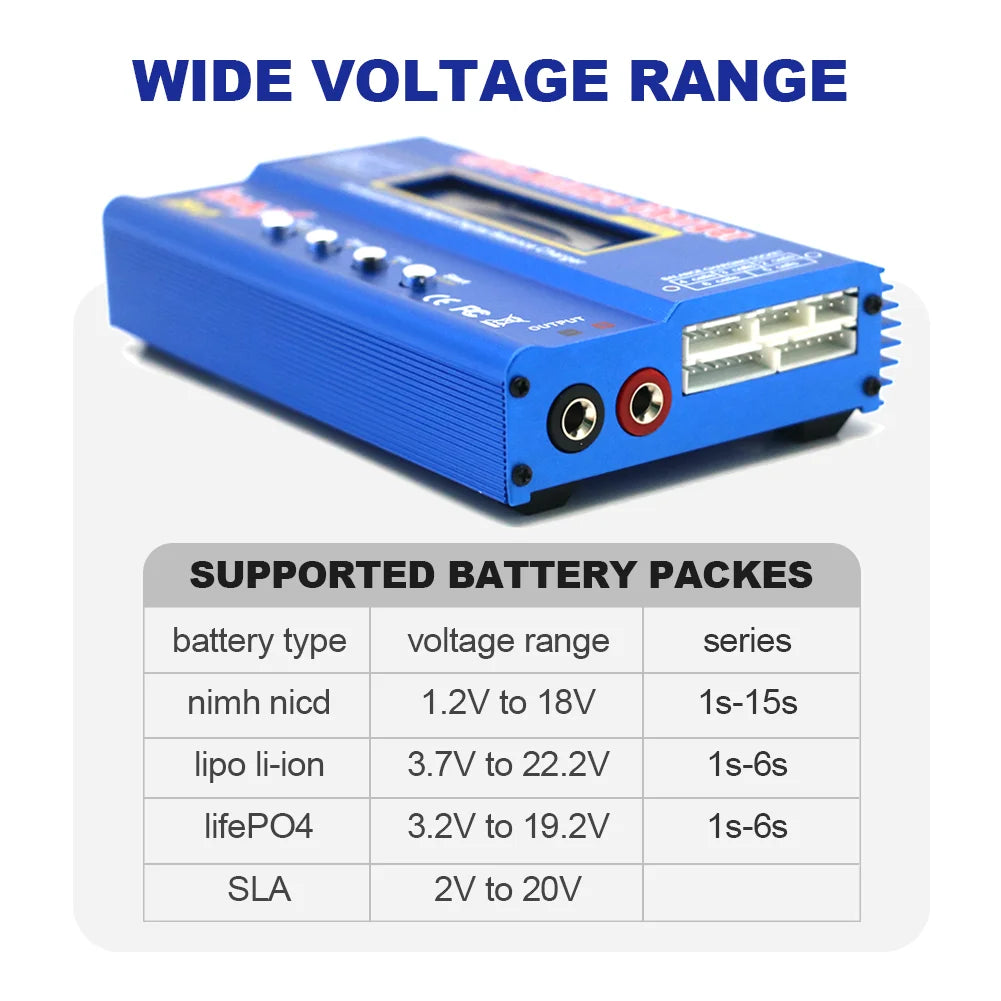

* LiIon/LiPo/LiFe cells : 1-6 cells
* NiCd/NiMH cells : 1-15
* Pb battery voltage: 2~20v
* Net Weight: 277g
* Dimensions: 133x87x33mm
Chip :ATMEGA32L

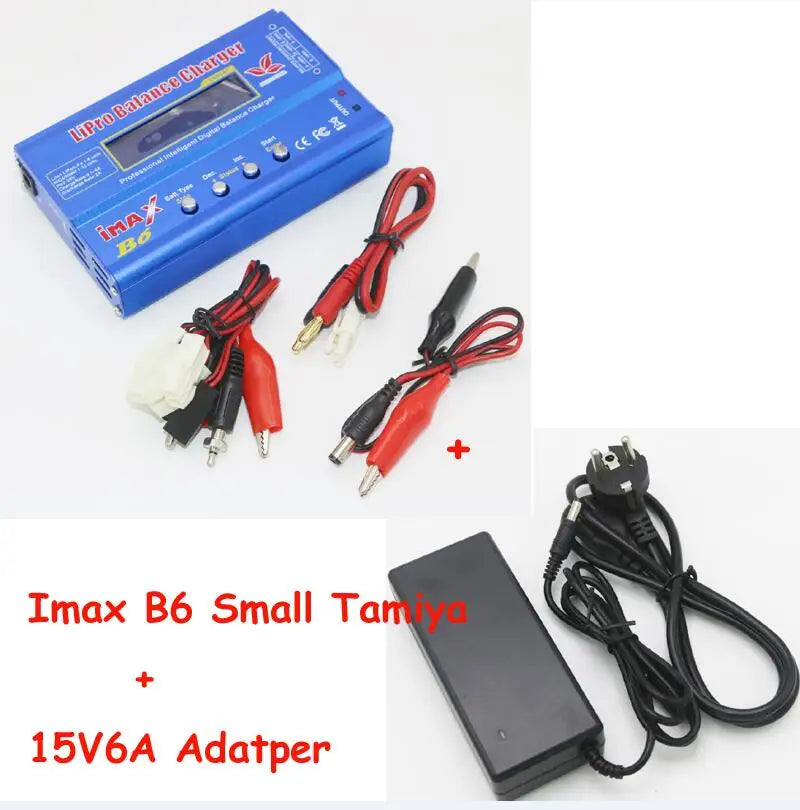

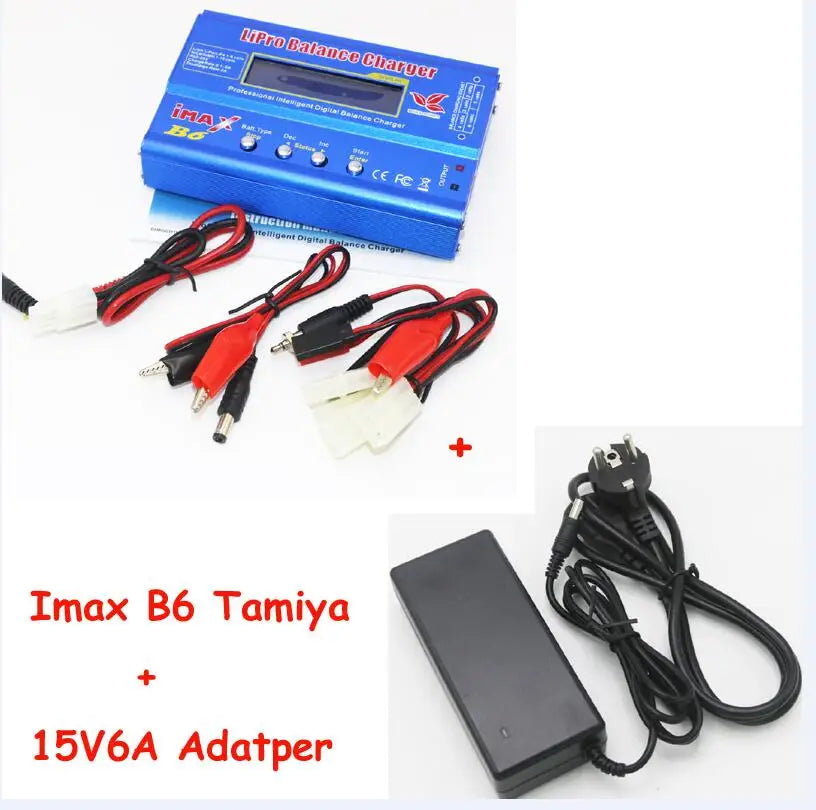

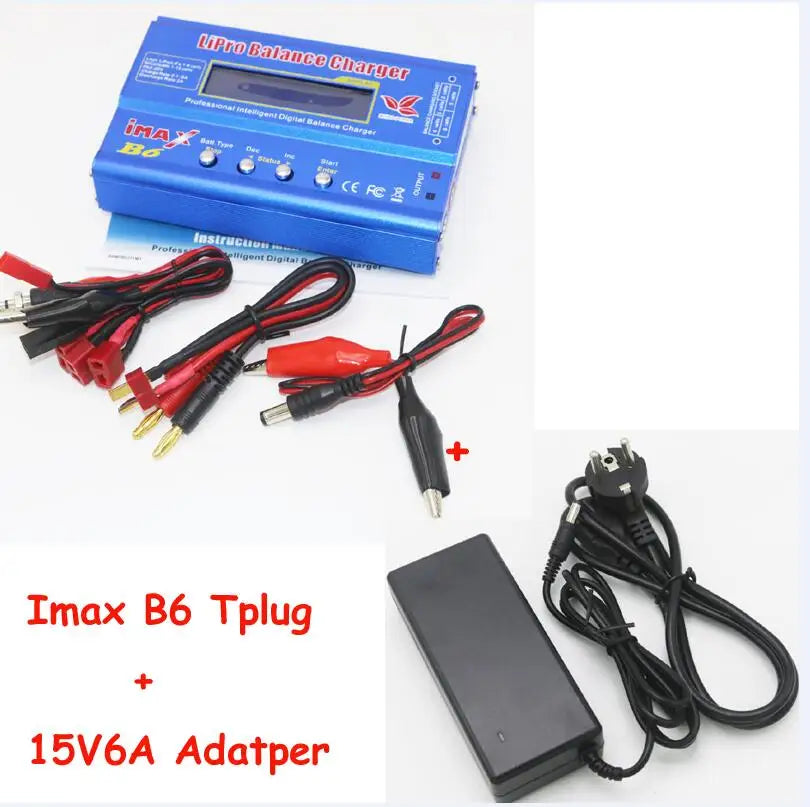

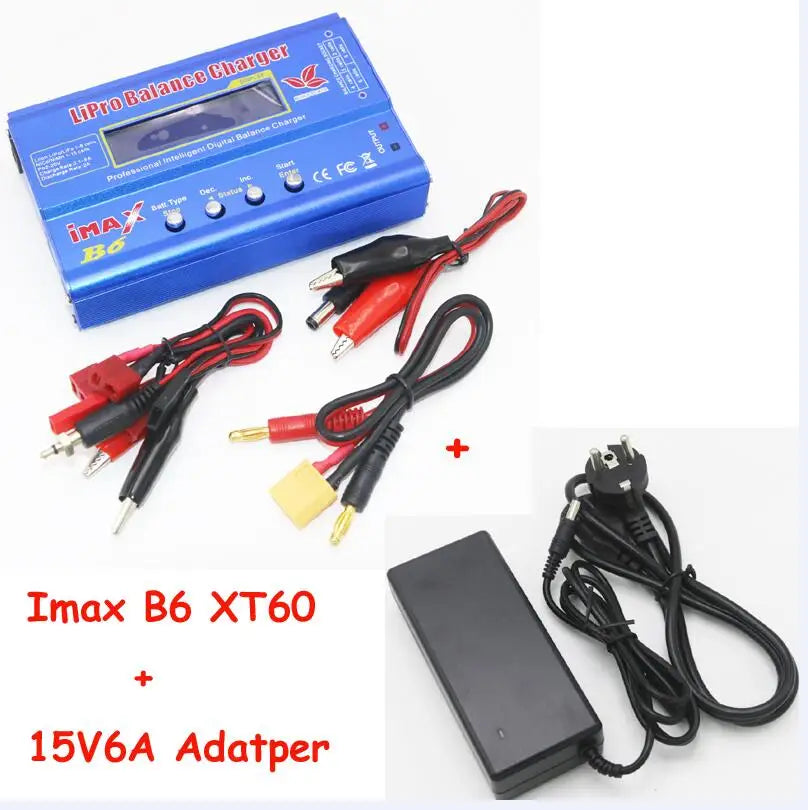

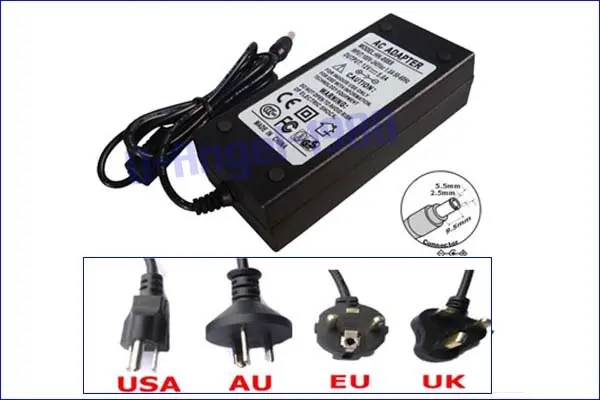

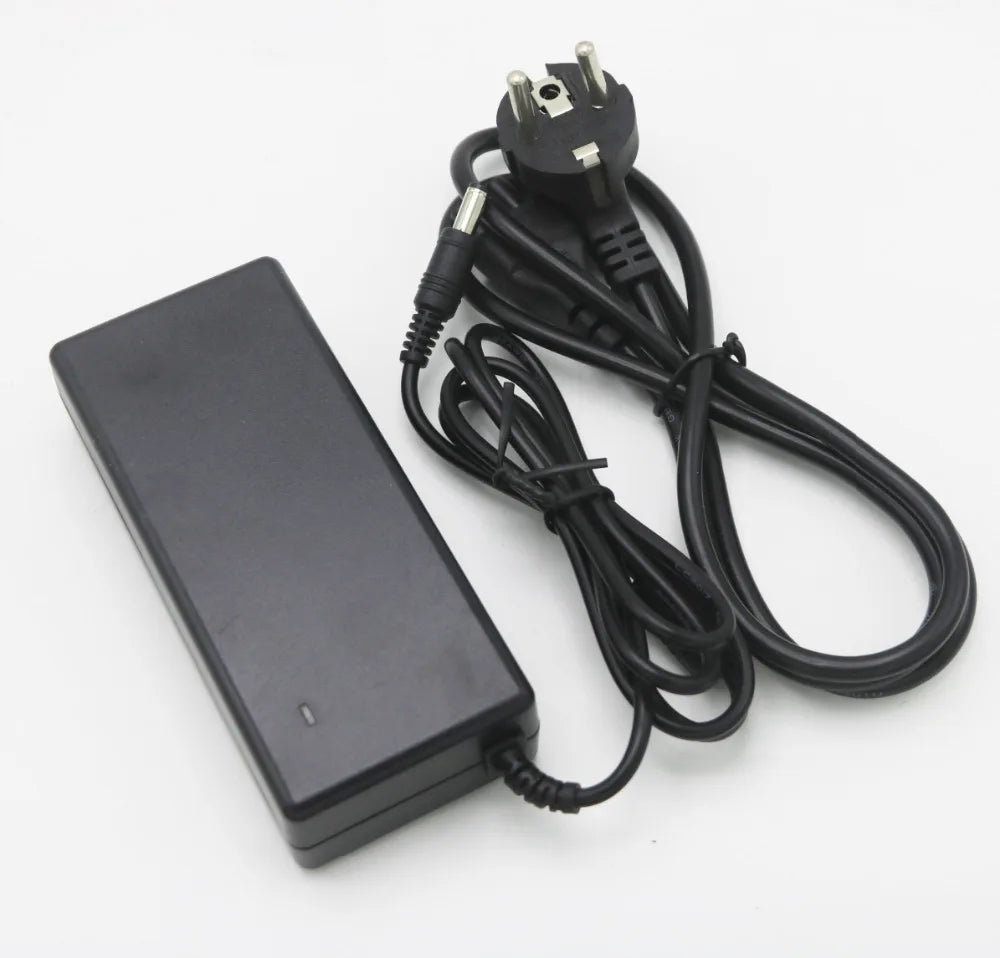

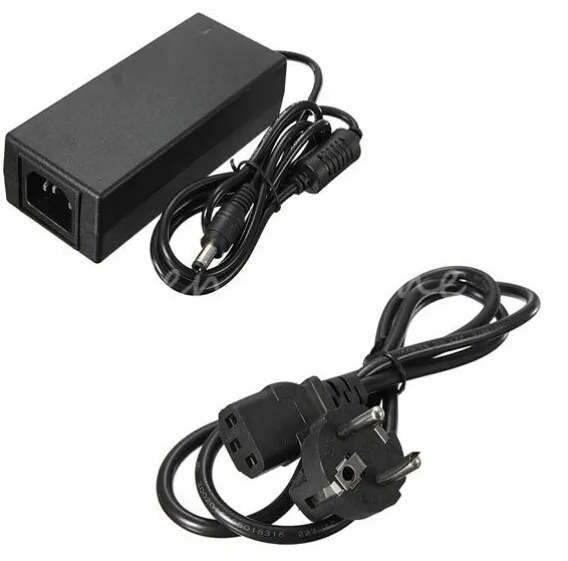

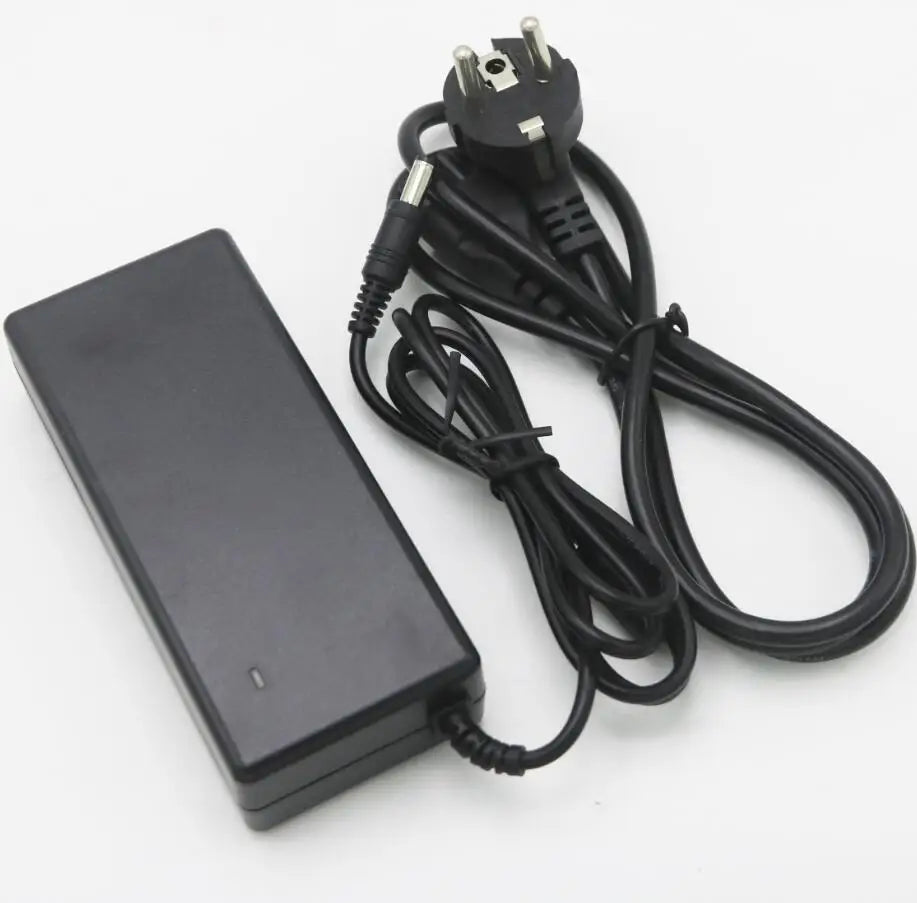

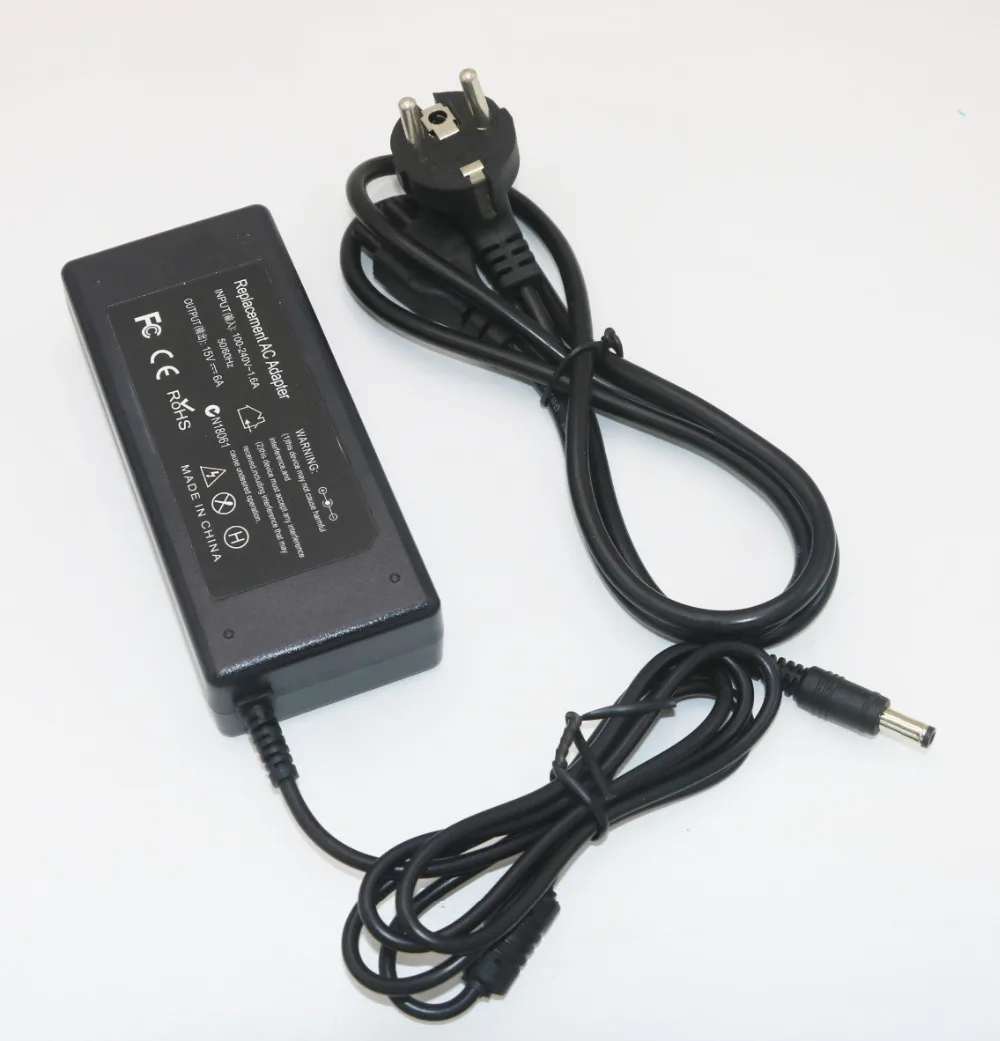

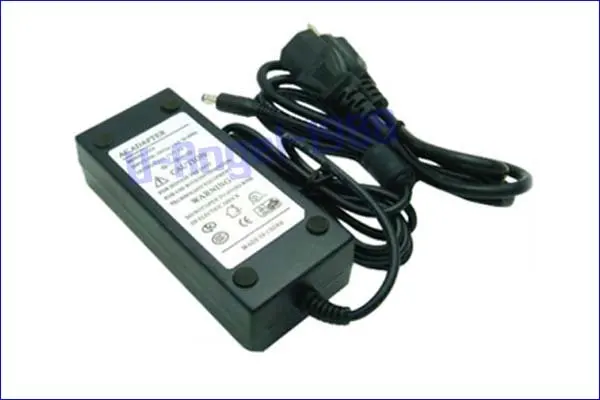

-15V 6A AC adapter:

Input : 100-240V AC 50/60Hz
Output : DC 15V 6A
Power:80W
Color: Black
DC Plug size:
-Inner diameter:2.5mm
-Outer diameter:5.1mm
