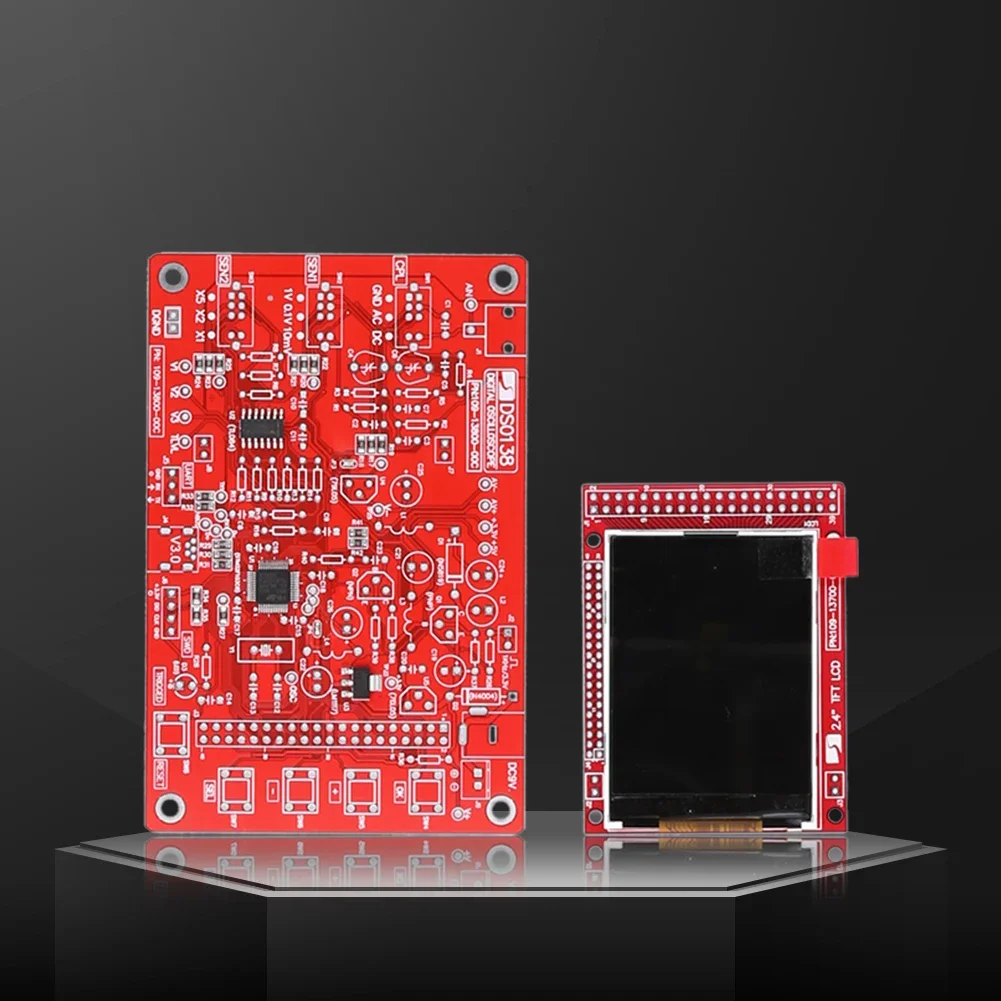

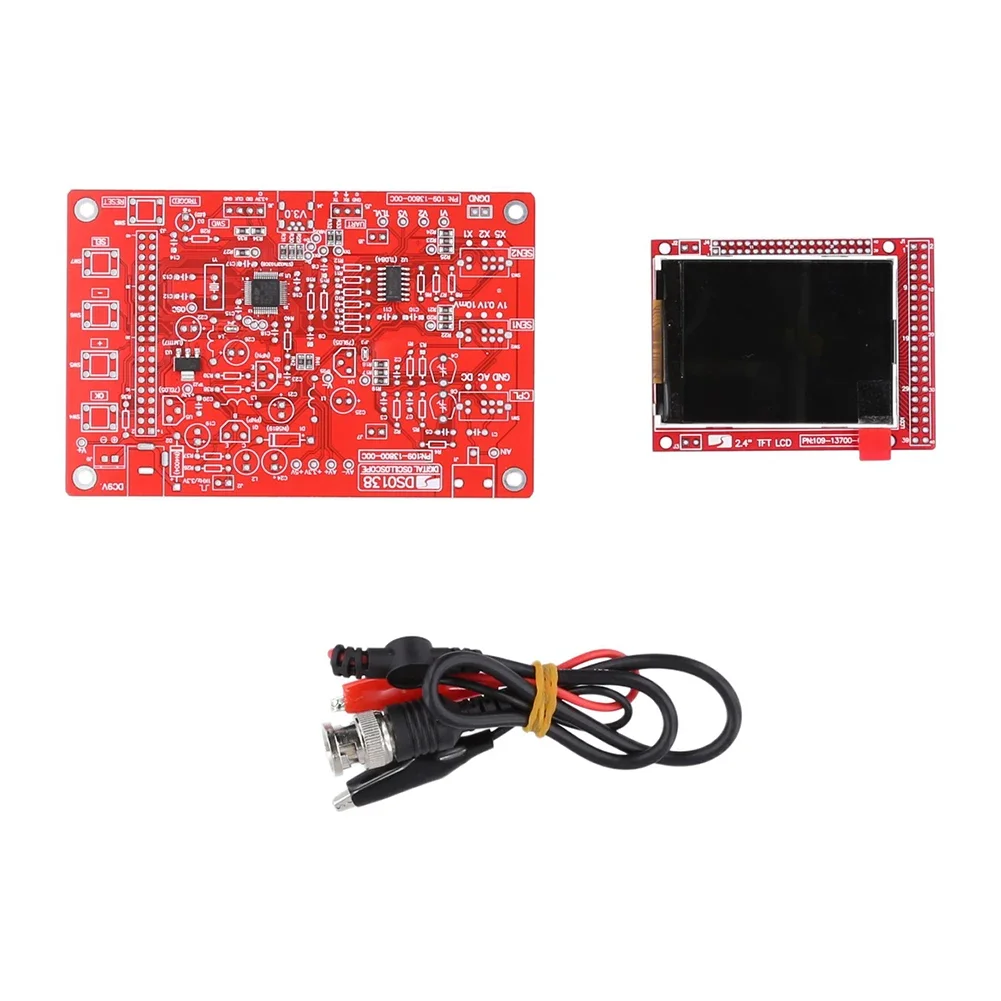

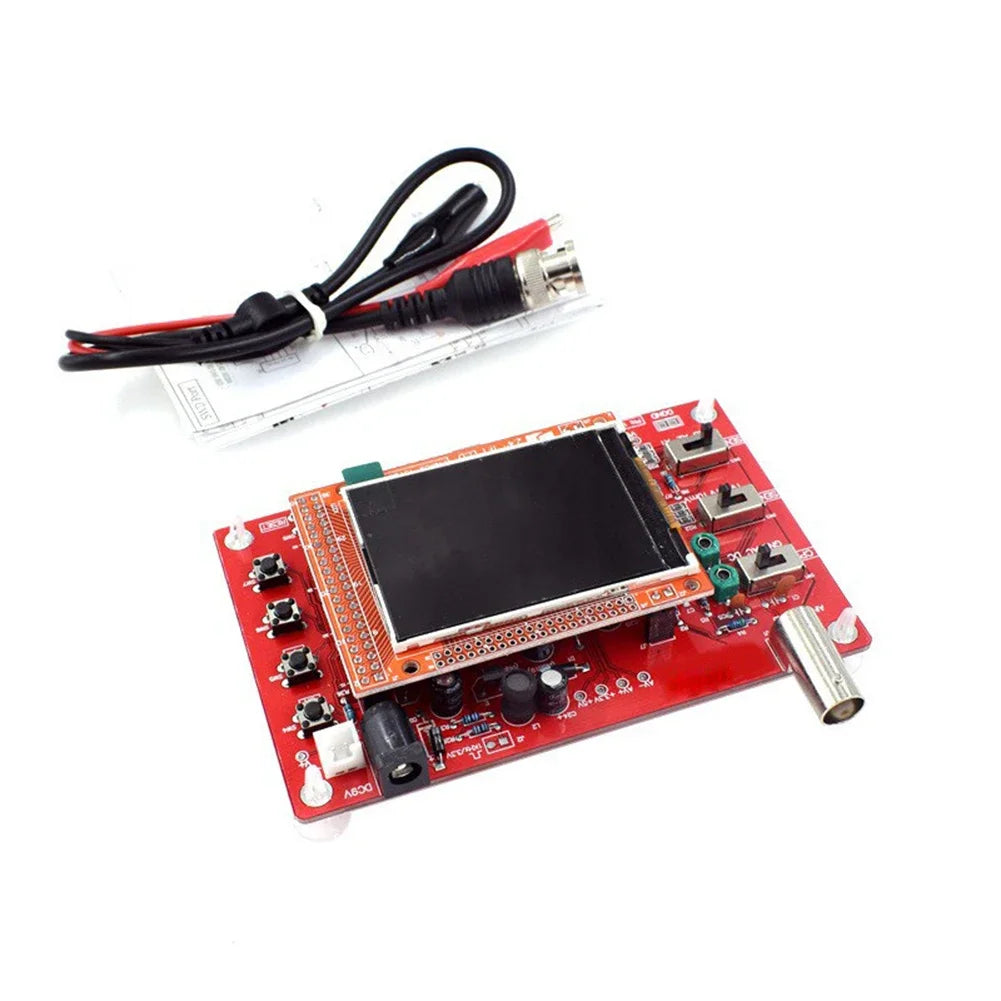

DSO138 Digital Oscilloscope DIY Kit 2.4inch TFT Digital Oscilloscope Kit DIY Parts 1Msps Electronic Learning Set
Feature:
1.Comprehensive Documentation: The DIY digital oscilloscope kit provides complete and detailed documentation, including circuit diagrams, assembly instructions, user guides, and troubleshooting methods. This ensures a high success rate in assembling the kit, making it suitable for electronics training.

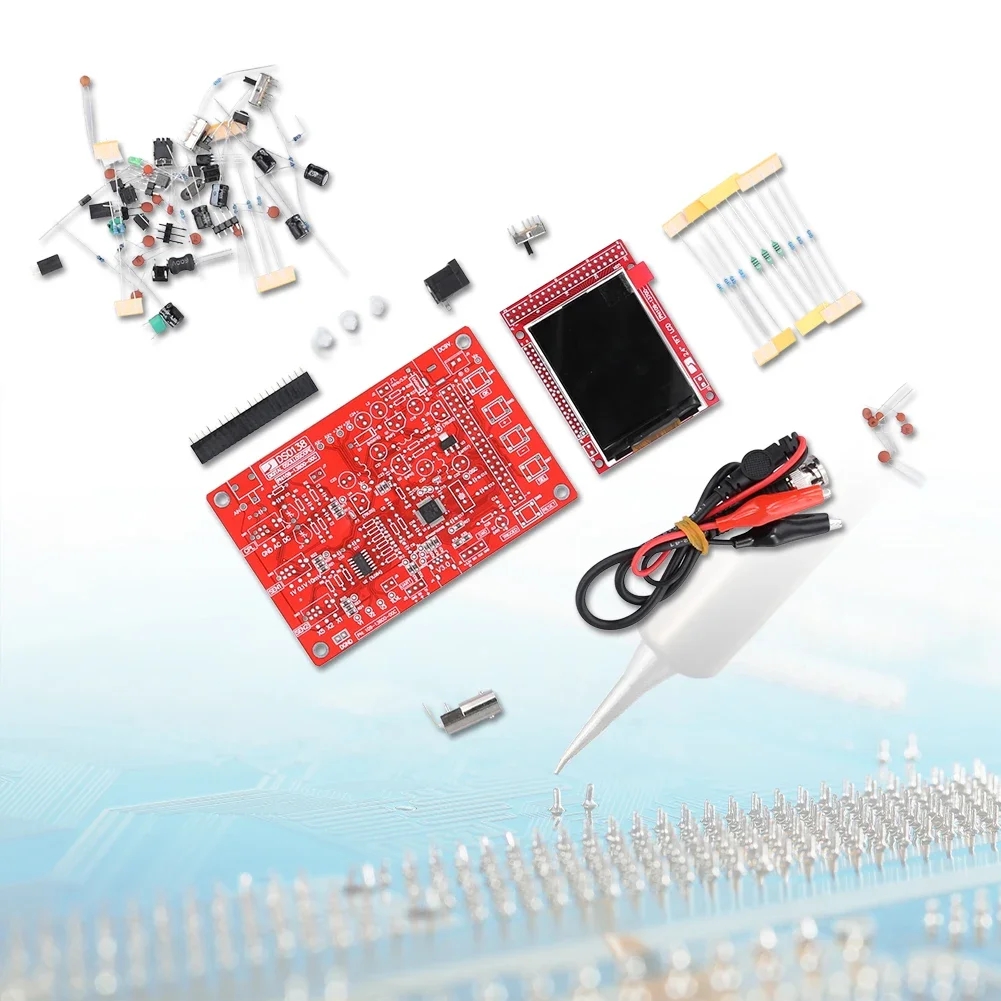

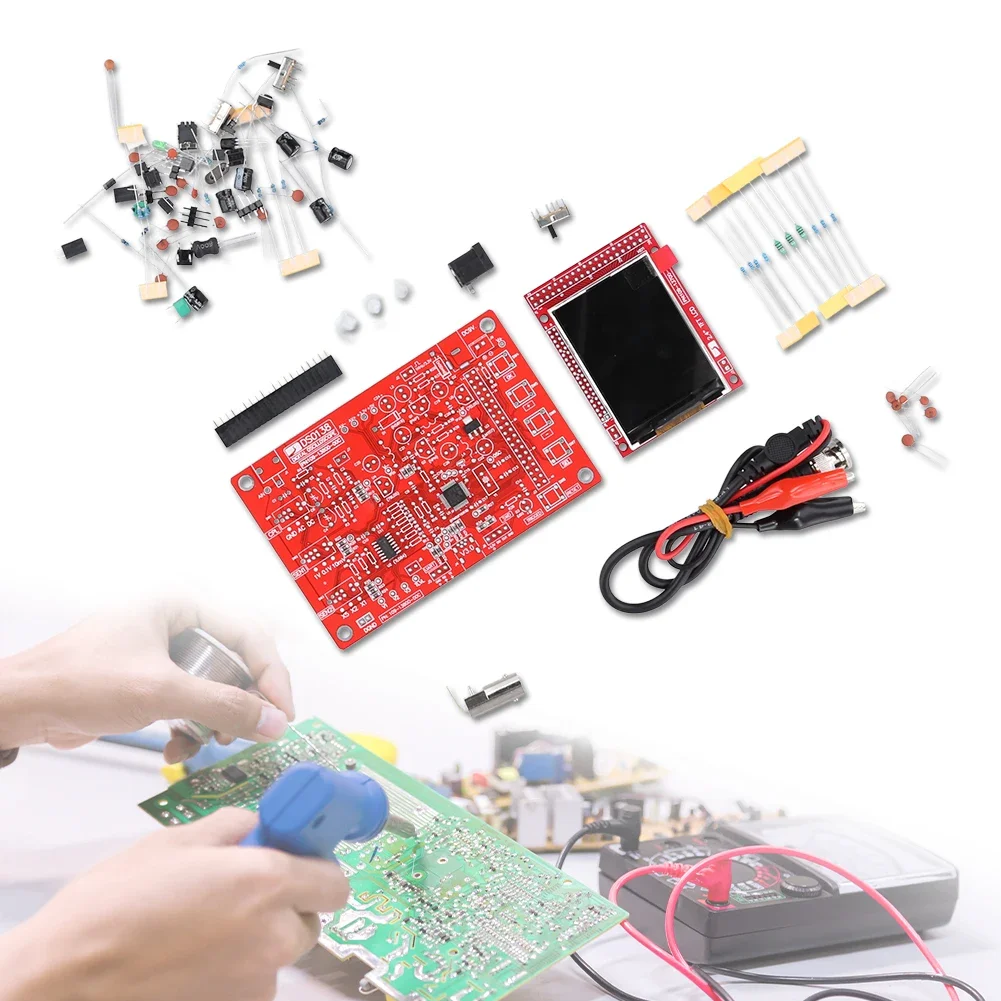

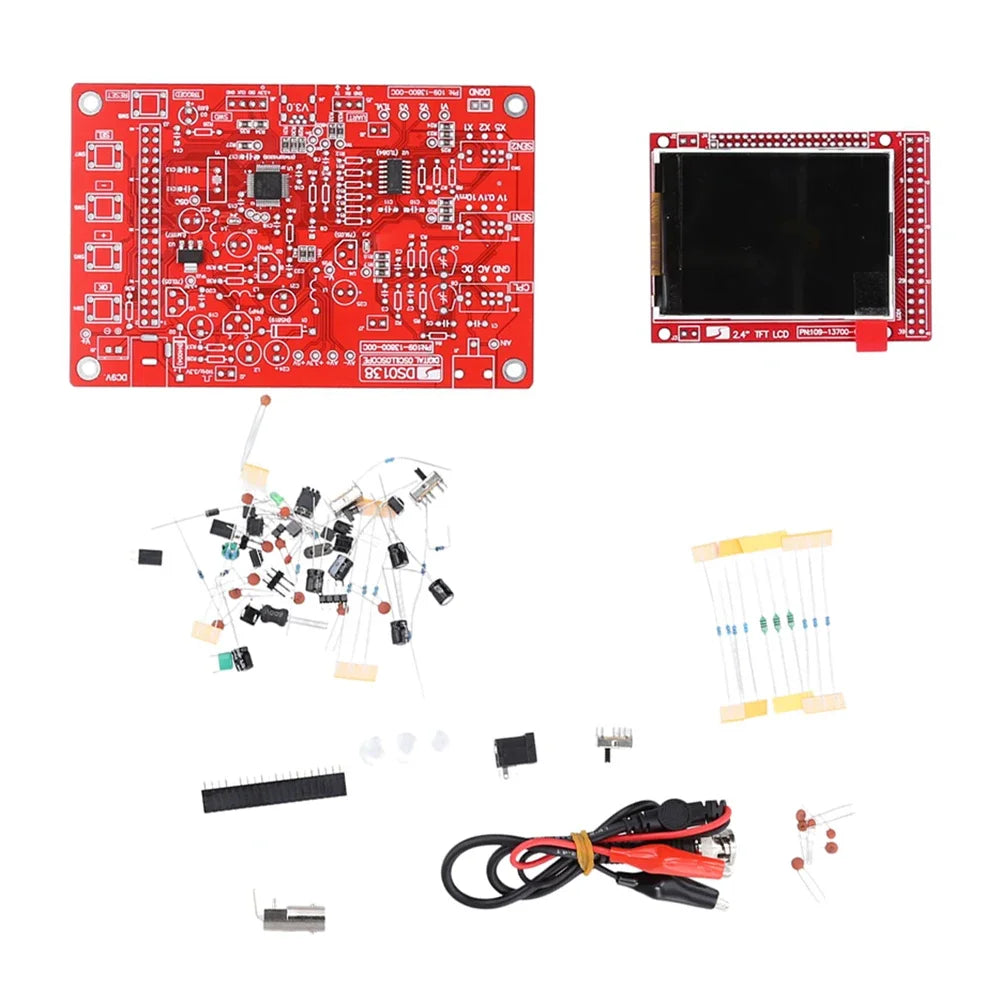

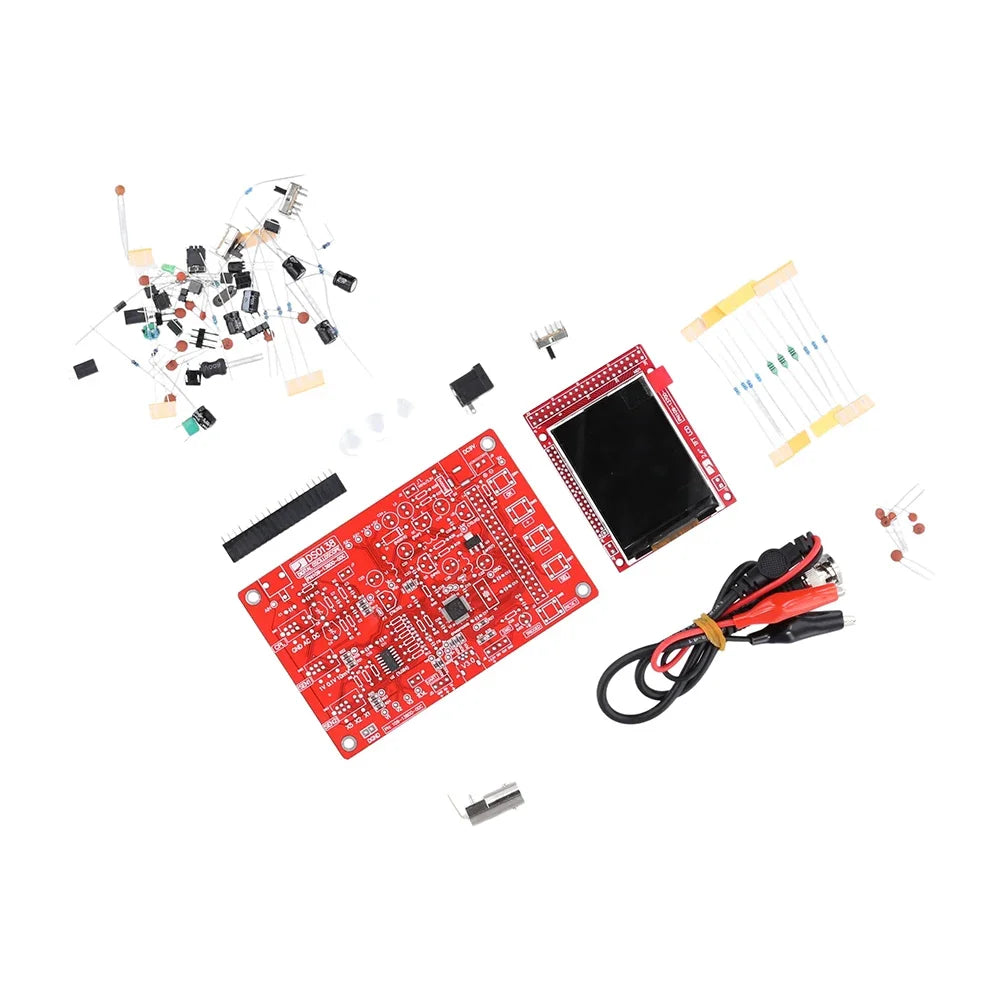

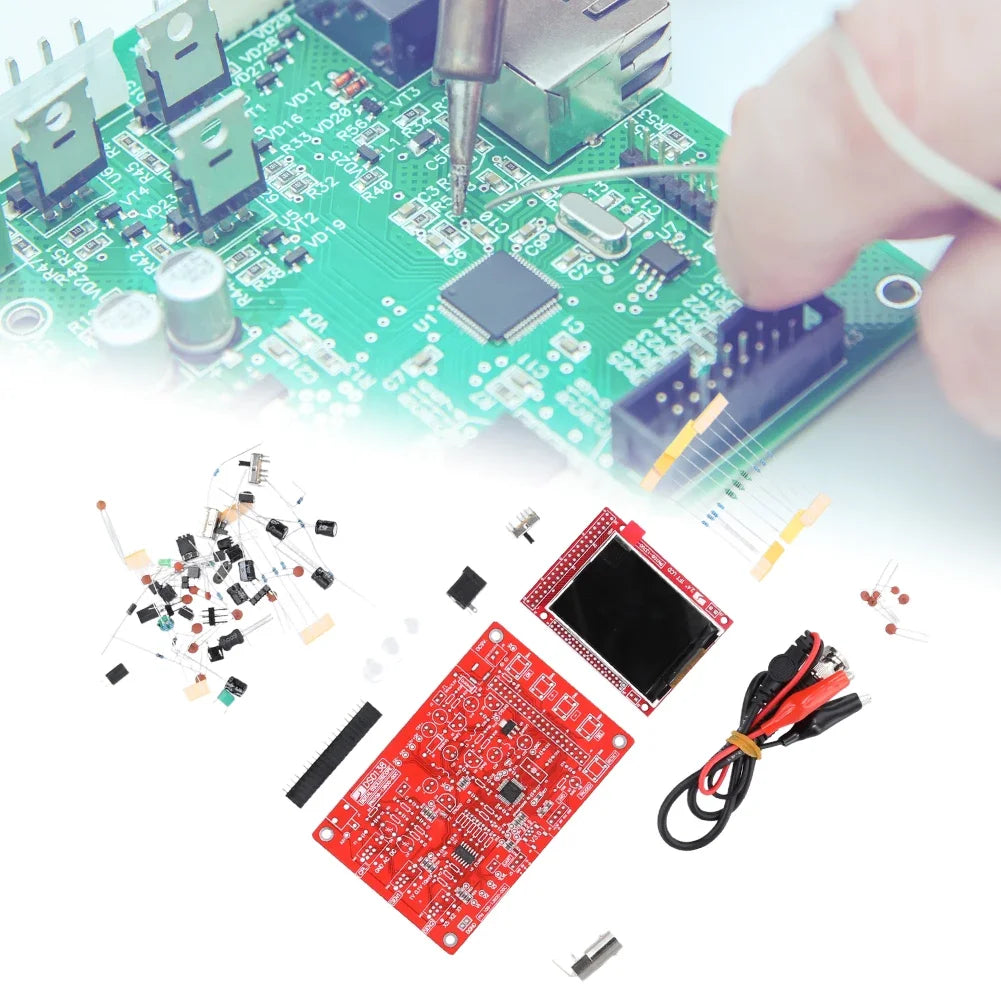

2.Diverse Component Variety: The digital oscilloscope kit offers a wide range of components, making it suitable for students to practice component recognition, through-hole component soldering, and surface-mount component soldering. This allows students to develop essential skills in electronic assembly.
3.Dual-purpose Tool: Alongside its assembly capabilities, the oscilloscope kit provides students with a practical tool. It enables effective observation and measurement of signal waveforms for audio, video synchronization, low-frequency switch power supplies, infrared reception, and transmission.

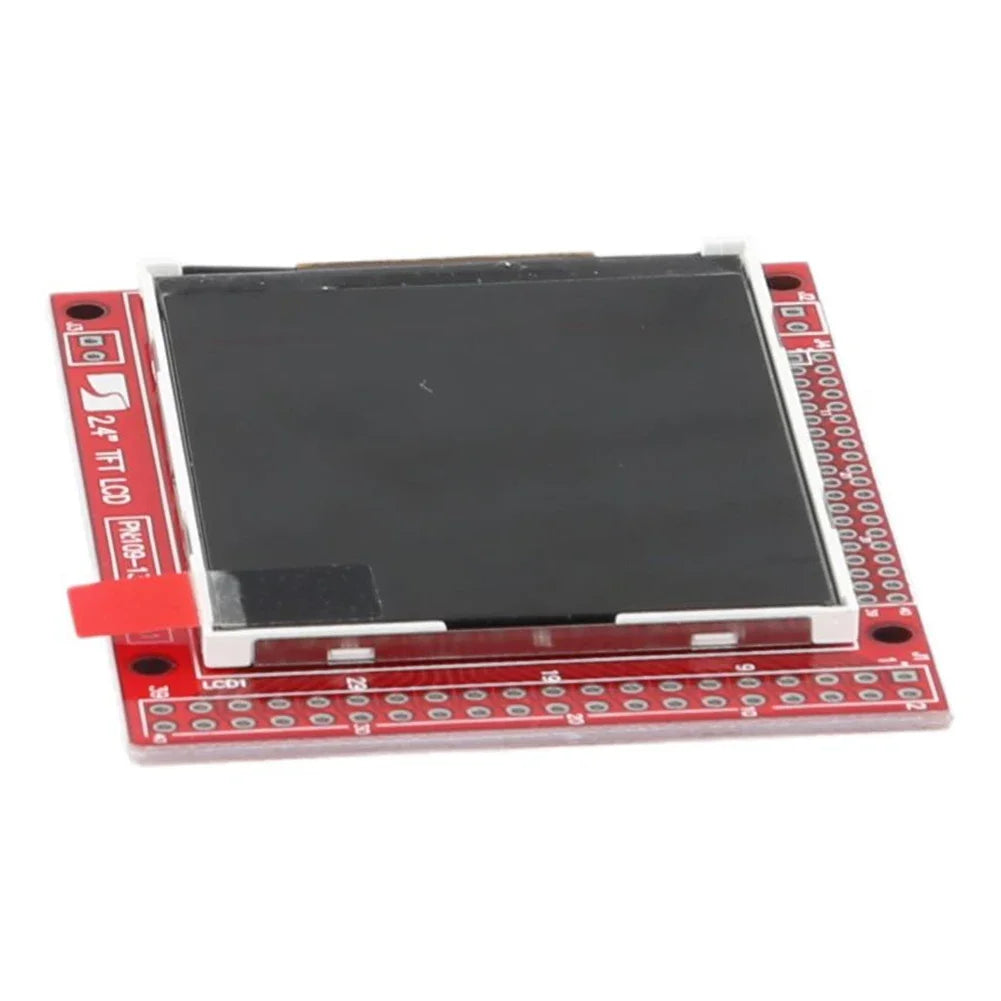

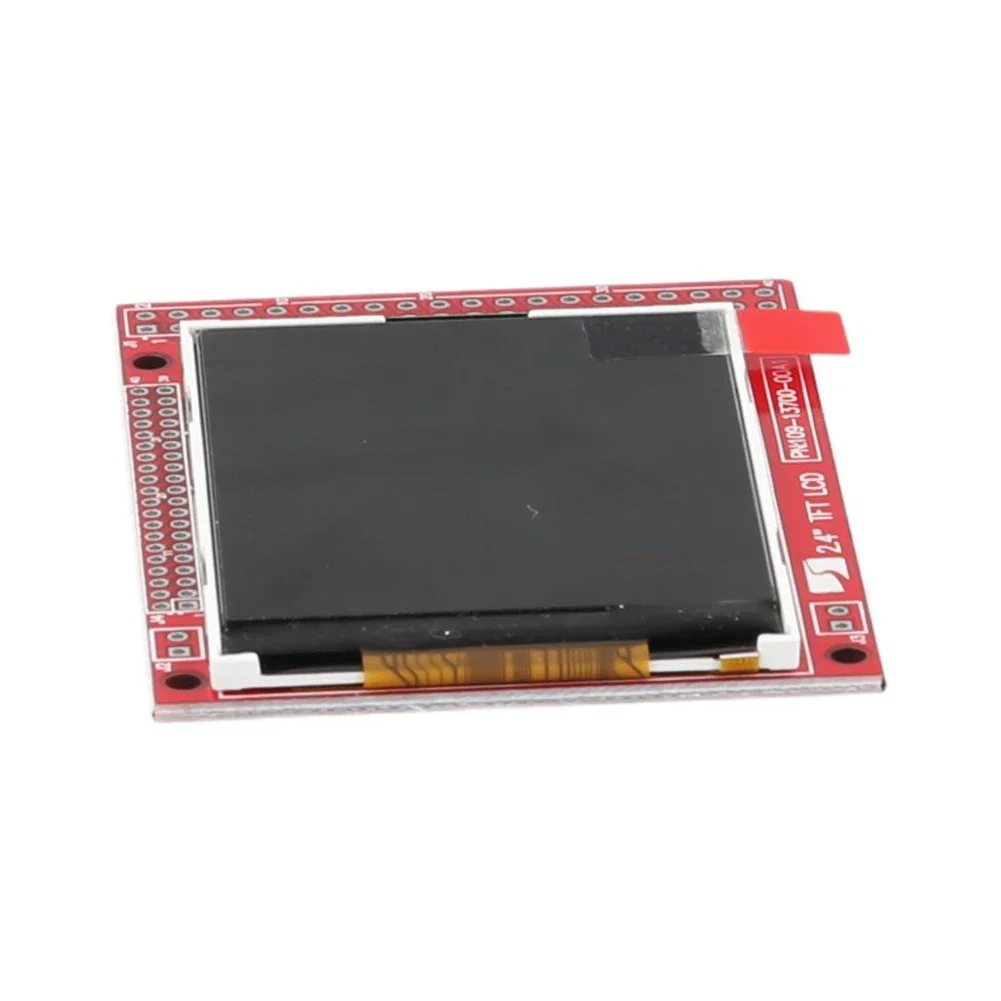

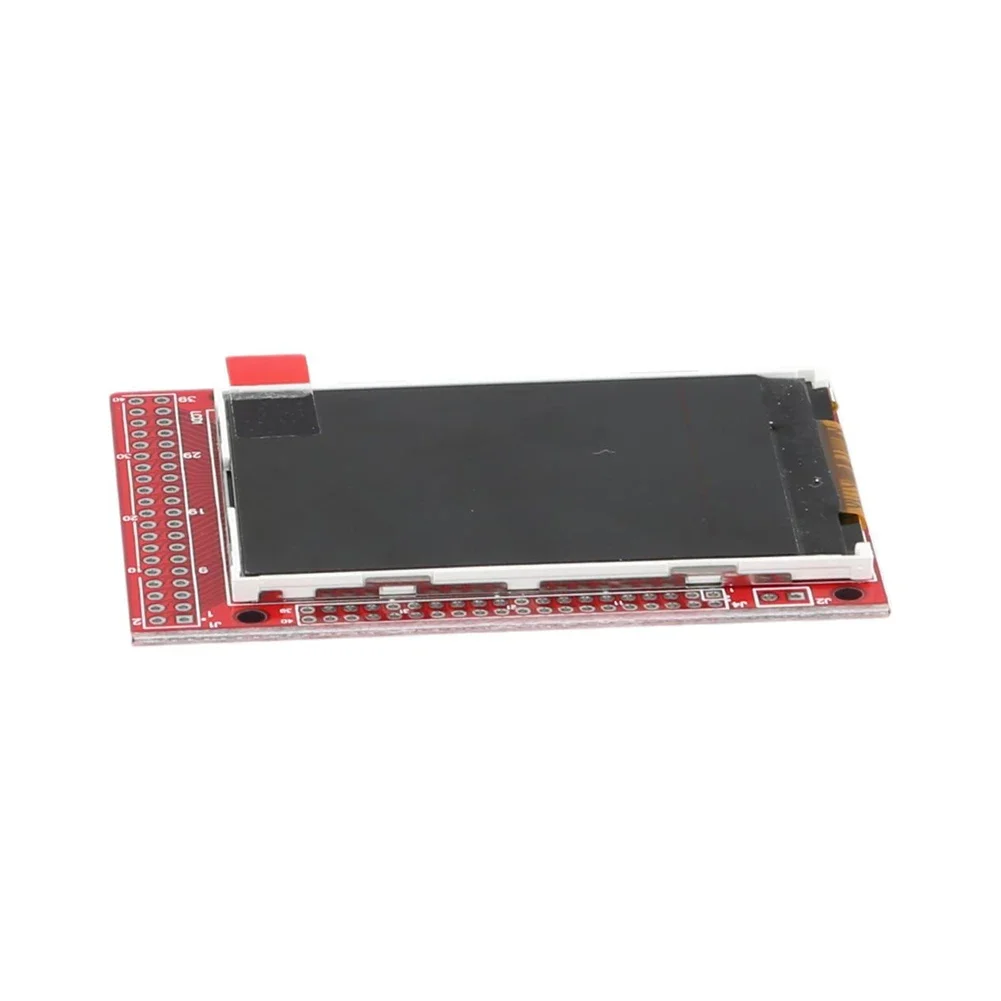

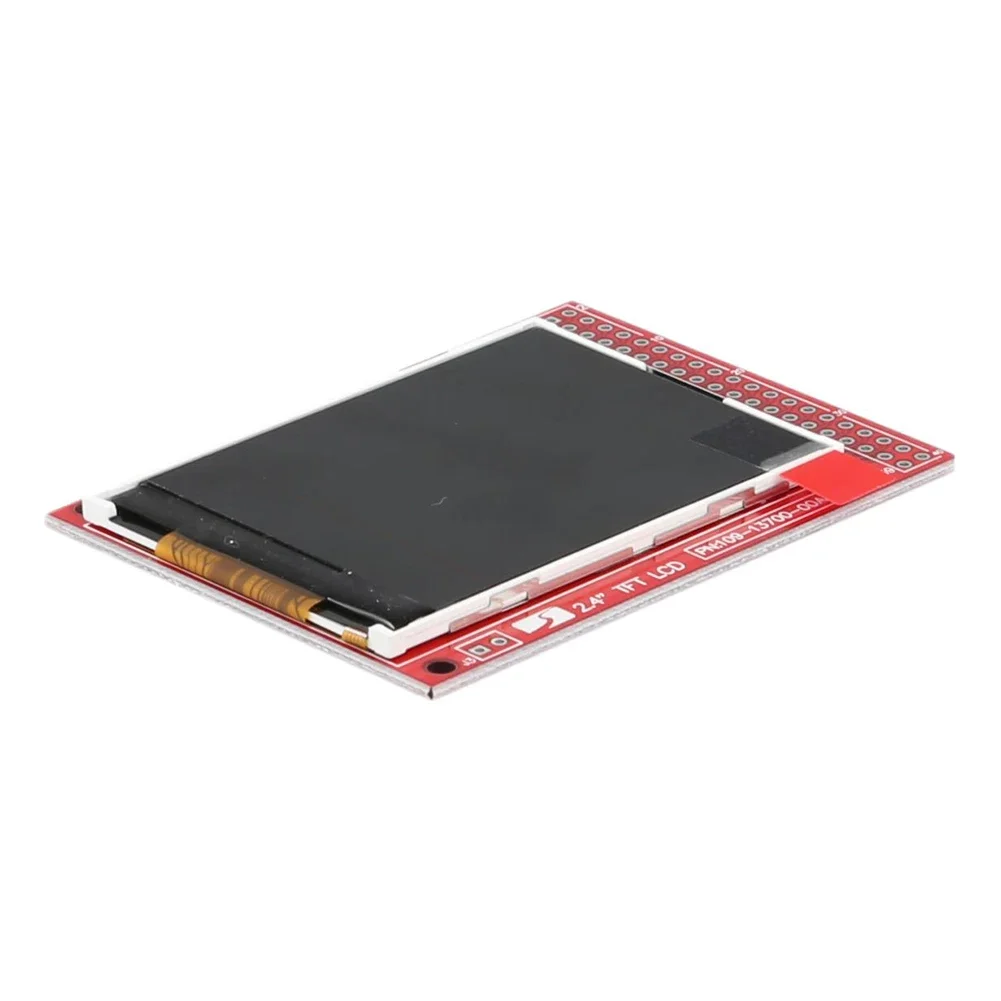

4.ARM Cortex-M3 Processor: The digital oscilloscope kit DIY parts utilizes an ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display. It serves as a platform for ARM development experiments, offering students an opportunity to explore and develop various functional programs.

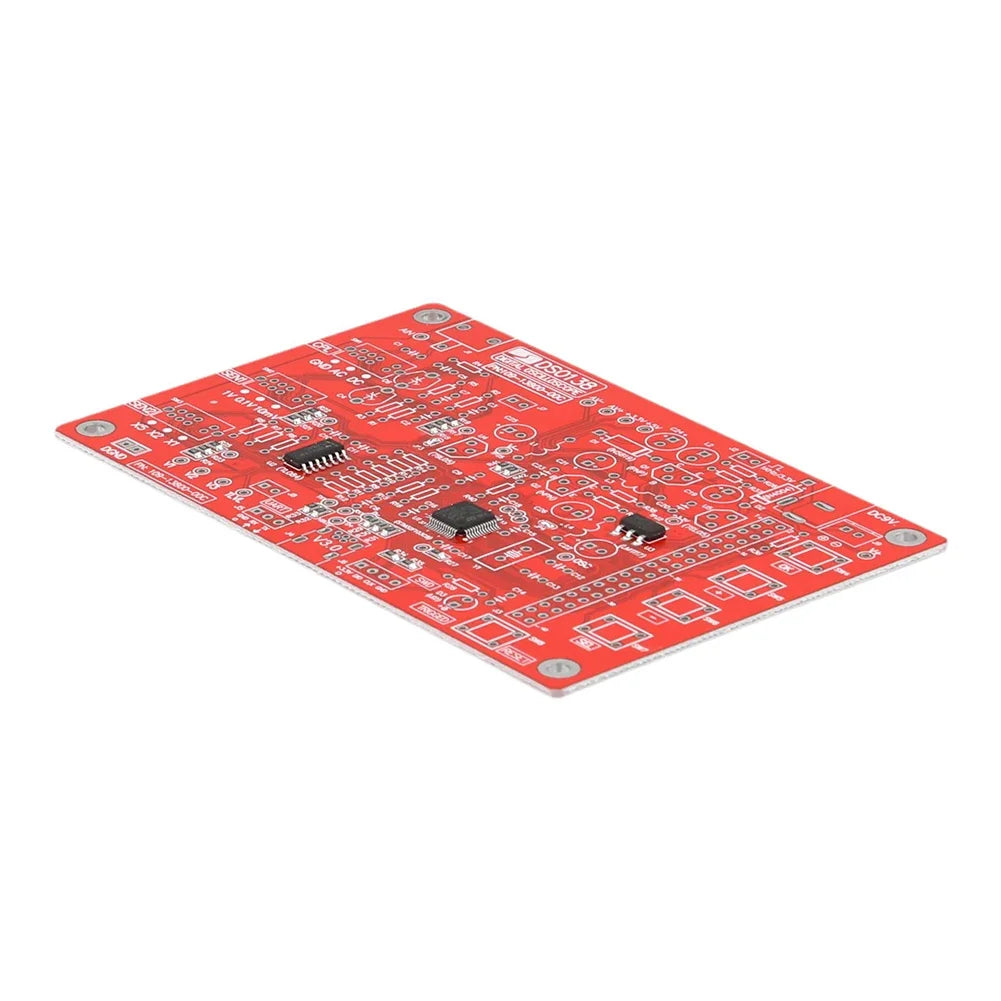

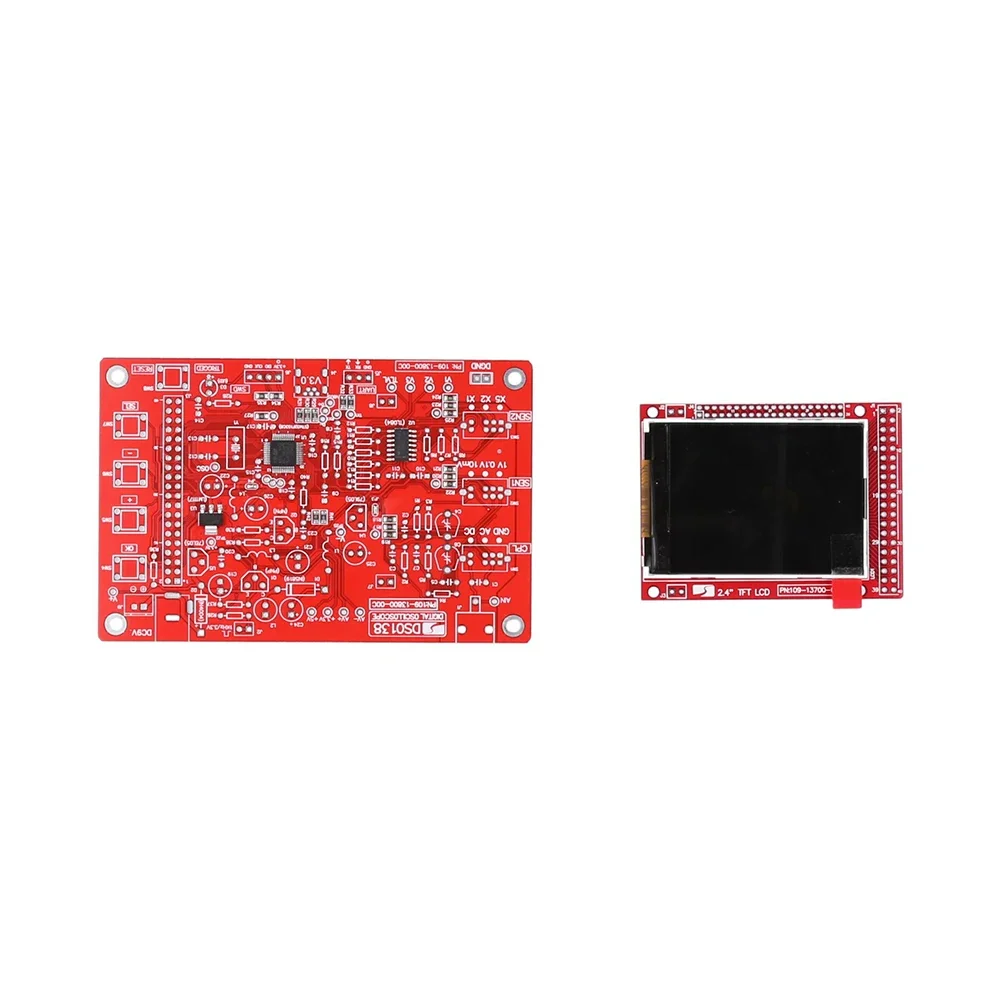

5.Multifunctional Development Board: The digital oscilloscope doubles as an STM32 microcontroller development and experimentation board, equipped with a color TFT LCD display. Combined with the provided source code development package from Jinyue Electronics, users can develop a wide range of functionalities and programs on this versatile board.
Specification:
Origin: Mainland China
DSO138 oscilloscope kit is a kit specially designed for teaching and training of electronics majors. It uses ARM Cortex-M3 processor and color TFT screen. It has the characteristics of simple and reliable circuit, moderate production difficulty and high production success rate. The DSO138 kit highlights the characteristics of the oscilloscope circuit, allowing students to gain an in-depth understanding of the structure and principles of the oscilloscope while learning practical production skills. The oscilloscope technology has good practicality. After completing the production, students will get a useful tool, which will be of great help in learning electronic technology in the future.
Real-time sampling rate: 1Msps
Accuracy: 12Bit
Sample buffer depth: 1024 bytes
Analog frequency bandwidth: 0 - 200KHz
Vertical sensitivity: 10mV/Div - 5V/Div (in steps of 1-2-5)
Vertical displacement is adjustable with indication
Input impedance: 1MΩ
Input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling methods include DC/AC/GND
Horizontal time base range: 10μs/Div - 50s/Div (progressively in 1-2-5 manner)
With automatic, normal and single trigger modes, it is convenient to capture instantaneous waveforms
Available as rising or falling edge trigger
Trigger level position is adjustable with indication
Observable waveform before trigger (negative delay)
Waveform display can be frozen at any time (HOLD function)
Comes with 1KHz/3.3V square wave test signal source
Size: 117x78x17mm/4.61x3.07x0.67inch
