SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

Origin: Mainland China

Type: Voltage Regulator

semi_Choice: yes

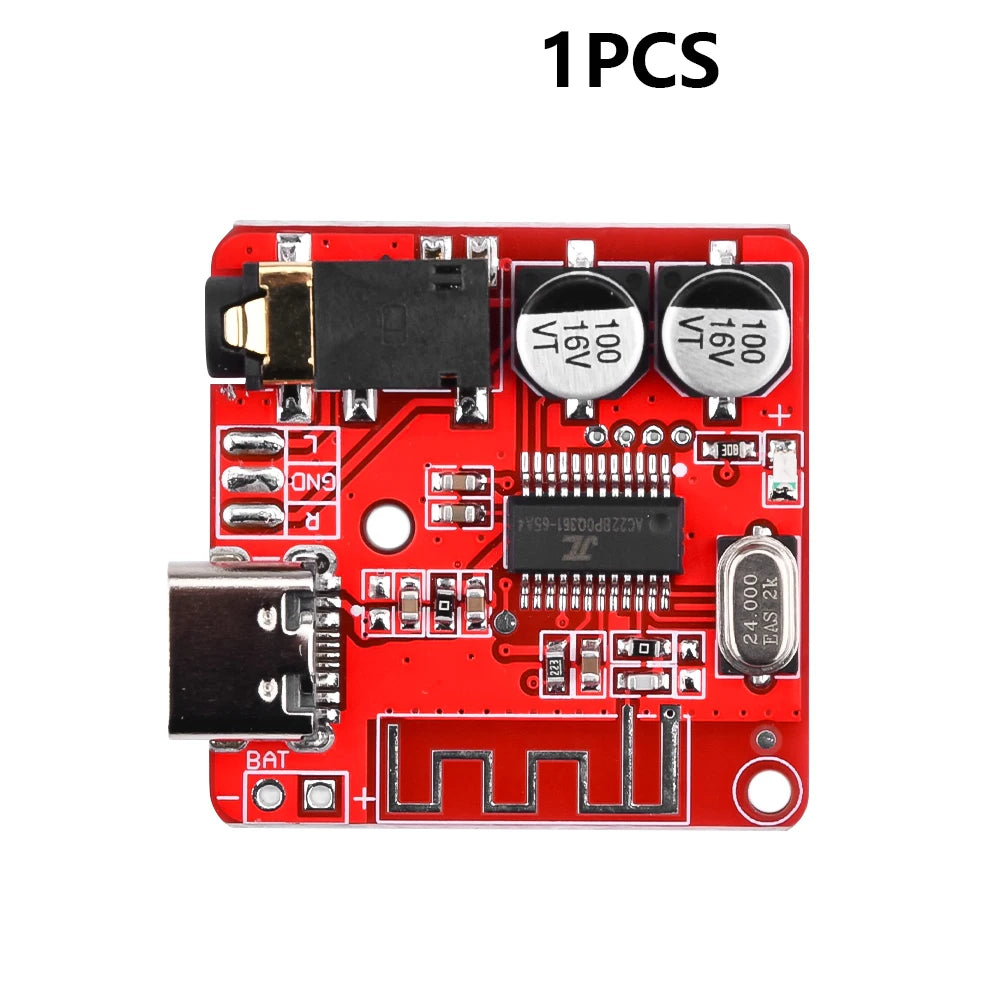

Product features.

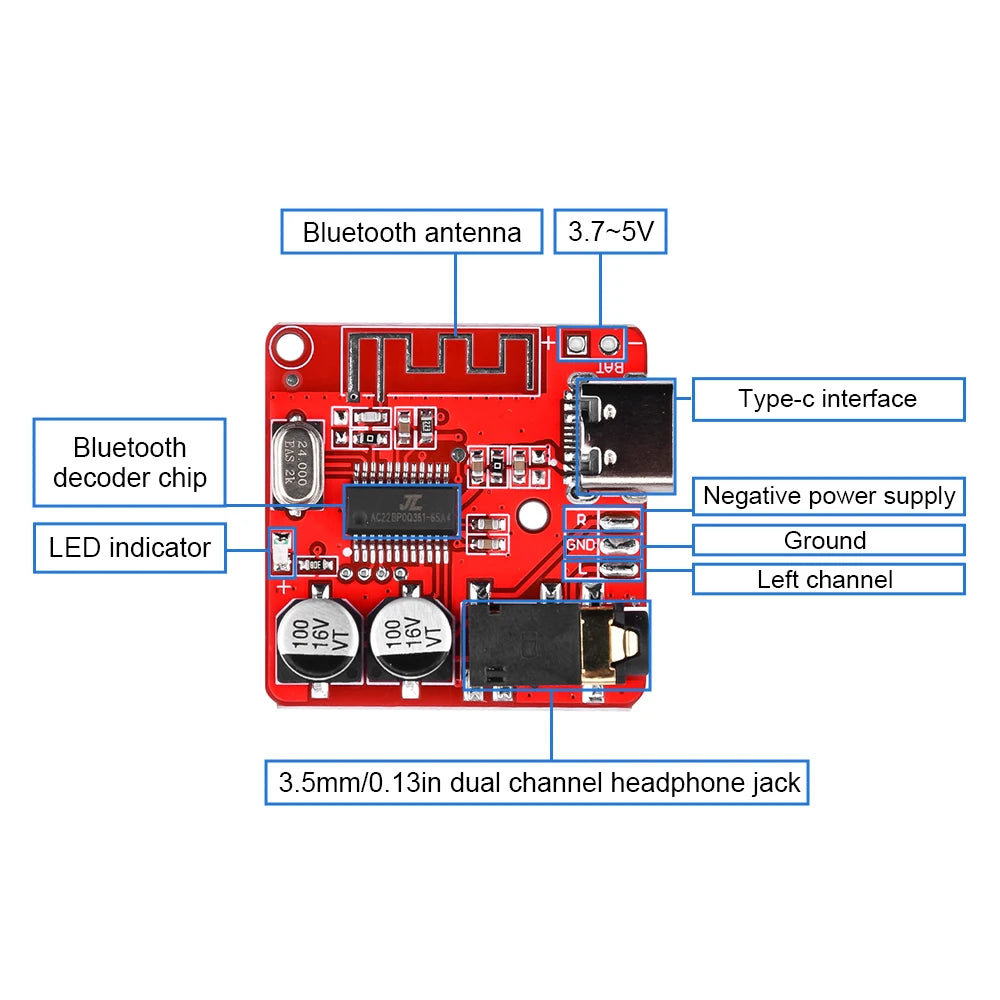

Newly upgraded Type-C interface; 3.7V-5V power supply solder plate for external 3.7V-5V lithium power supply.

Easy to install, small size of decoder board.

Simple structure, easy to use and easy to install.

With indicator, standard 3.5mm audio interface, more convenient to use

Suitable for all kinds of DIY, car audio modification, home audio modification, personal diy Bluetooth audio, electronic project production, etc.

Product parameters.

Interface: Type-C

Power supply voltage:DC 3.7-5V

Signal to noise ratio:90dB

THD+H:-70dB

Crosstalk:-70dB

Noise reduction:91dB

Support Profile:A2DP/AVCTP/AVDTP AVRCP/HFP

Sync loss:>15m

Audio interface: standard 3.5mm interface, output stereo sound, can be plugged into headphones, connected to amplifiers and other devices

LED indicator: Bluetooth mode blue light long light

Operating instructions.

Use Type-C cable power supply, the blue light flashes, enter Bluetooth mode; when you hear the voice announcement, it means enter Bluetooth mode and wait for pairing; after the cell phone Bluetooth search "HW-BT" (the device name of decoding version), click connect. When the decoder board is successfully connected with the cell phone, the blue indicator light will be on for a long time and you can play music, and the blue indicator light will be flashing at this time.

Product List

1X audio decoder board
